The GO Regulator HPR-2 Electrically Heated Vaporizing Regulator is a reliable solution designed to supply heat to samples entering instrumentation systems. With a stainless steel body, unique heat exchange element, and TCO Thermistor option, this regulator offers precise pressure control, optimal sealing, and up to 100 square inches of heat transfer area. Ideal for analytical process sample conditioning in various industries, including petrochemical refineries, chemical production facilities, and natural gas pipeline sampling. This CSA-approved regulator ensures safety and efficiency in gas analysis processes.
Product Specifications
Features And Benefits Features And Benefits
Optional HASTELLOY® C and MONEL®Electropolished body with better than 25 Rafinish in diaphragm cavity for an optimal sealing surfaceBubble-tight shutoffModular pressure control and heat exchanger assemblies for easy maintenanceUnique spiral wrapped heat exchange element provides up to 100 square inches of heat transfer area.Optional TCO heating cartridgeINCONEL® diaphragm standard
Note Note
Contact the factory for any additional requirements.Units that will be used for flammable liquid or gas with fire point at 200ºC or below require the TCO Thermistor. It is also recommended to use the 1-PC body option. In addition, Tefzel and PCTFE seats in these units are recommended to use the captured vent cap option which provides for venting to a safe location.
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Tamper-Proof, Standard, Stainless Steel
Specifications Certifications
Canadian Standards Association (CSA) Certification # LR-82566-5 | Certification # TRL03ATEX11001X
Specifications Flow Coefficient Cv
0.06
Specifications Heater Block Porting
Standard Block
Specifications Heater Block Type
120 V Alternating Current Voltage (VAC)
Specifications Heater Wattage
100 W
Specifications Options
TCO Thermistor
Specifications Outlet Range
0 to 50 psig
Specifications Port Configuration

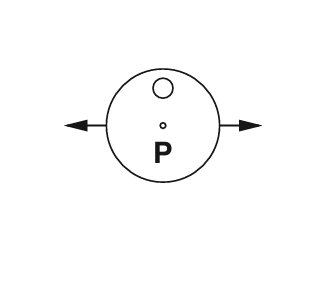

P - See Diagram for Port Configuration
Specifications Seat Material
Tefzel®
Specifications Temperature Rangeheating Type
260 to 380 ºF
Technical Data Inlet Pressure
Up to 6000 psig at 380 ºF (193 ºC)
Technical Data Operating Temperature
0 to 500 ºF | 260 ºC
Applications Applications
Analytical process sample conditioning systems:Petrochemical refineriesChemical production facilitiesPilot plants (chemical & petrochemical)LNG loading and off-loading pointsNatural gas pipeline sampling
