GO Regulator HPR-2: Electrically heated for precise sample conditioning in analytical processes.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
GO Regulator HPR-2 Electrically Heated Vaporizing Regulator
$899.99
Quantity: 1
Claim Your Seller Account
GO Regulator HPR-2 Electrically Heated Vaporizing Regulator
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator HPR-2 Electrically Heated Vaporizing Regulator is a versatile solution designed to supply heat to samples in instrumentation systems, preheat liquids, prevent gas condensation, and vaporize liquids for gas analysis. With a modular design featuring a heat exchanger and pressure control sections, this regulator offers outstanding outlet pressure stability and efficient heat transfer with up to 100 square inches of heat exchange area. Certified by CSA and ATEX, it ensures safety with a Class-rated housing and optional TCO heater cartridge. Perfect for analytical process sample conditioning systems in petrochemical refineries, chemical plants, LNG facilities, and natural gas pipelines.
Product Specifications
Features And Benefits Features And Benefits
Optional HASTELLOY® C and MONEL®Electropolished body with better than 25 Rafinish in diaphragm cavity for an optimal sealing surfaceBubble-tight shutoffModular pressure control and heat exchanger assemblies for easy maintenanceUnique spiral wrapped heat exchange element provides up to 100 square inches of heat transfer area.Optional TCO heating cartridgeINCONEL® diaphragm standard
Note Note
Contact the factory for any additional requirements.Units that will be used for flammable liquid or gas with fire point at 200ºC or below require the TCO Thermistor. It is also recommended to use the 1-PC body option. In addition, Tefzel and PCTFE seats in these units are recommended to use the captured vent cap option which provides for venting to a safe location.
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Tamper-Proof, Standard, Stainless Steel
Specifications Certifications
Canadian Standards Association (CSA) Certification # LR-82566-5 | Certification # TRL03ATEX11001X
Specifications Flow Coefficient Cv
0.06
Specifications Heater Block Porting
Standard Block
Specifications Heater Wattage
150 W
Specifications Options
TCO Thermistor
Specifications Outlet Range
0 to 50 psig
Specifications Port Configuration

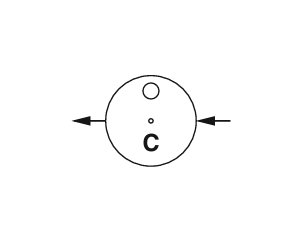

C - See Diagram for Port Configuration
Specifications Seat Material
Polychlorotrifluoroethylene (PCTFE)
Specifications Temperature Rangeheating Type
54 to 149 ºC | 130 to 300 ºF
Technical Data Inlet Pressure
Up to 6000 psig at 380 ºF (193 ºC)
Technical Data Operating Temperature
0 to 500 ºF | 260 ºC
Applications Applications
Analytical process sample conditioning systems:Petrochemical refineriesChemical production facilitiesPilot plants (chemical & petrochemical)LNG loading and off-loading pointsNatural gas pipeline sampling
