The GO Regulator HPR-2 Electrically Heated Vaporizing Regulator is a versatile solution designed for precise control in analytical process sample conditioning systems. This regulator features a modular design with a unique spiral wrapped heat exchange element, offering exceptional heat transfer efficiency. With CSA and ATEX approvals, this regulator ensures safety and reliability. The HPR-2 is crafted from high-quality materials like 316L Stainless Steel and offers optional features like the TCO Thermistor for enhanced performance.
Product Specifications
Features And Benefits Features And Benefits
Optional HASTELLOY® C and MONEL®Electropolished body with better than 25 Rafinish in diaphragm cavity for an optimal sealing surfaceBubble-tight shutoffModular pressure control and heat exchanger assemblies for easy maintenanceUnique spiral wrapped heat exchange element provides up to 100 square inches of heat transfer area.Optional TCO heating cartridgeINCONEL® diaphragm standard
Note Note
Contact the factory for any additional requirements.Units that will be used for flammable liquid or gas with fire point at 200ºC or below require the TCO Thermistor. It is also recommended to use the 1-PC body option. In addition, Tefzel and PCTFE seats in these units are recommended to use the captured vent cap option which provides for venting to a safe location.
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Tamper-Proof, Panel, Mount, Stainless Steel
Specifications Certifications
Canadian Standards Association (CSA) Certification # LR-82566-5 | Certification # TRL03ATEX11001X
Specifications Flow Coefficient Cv
0.06

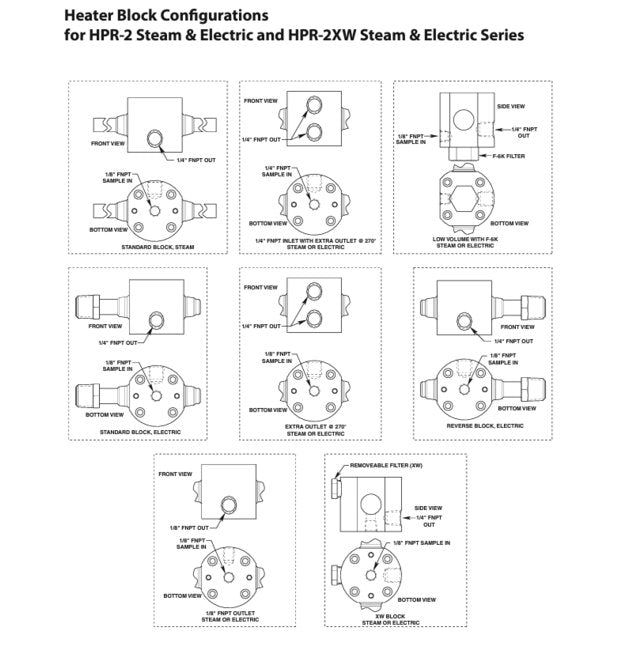

Specifications Heater Block Porting
Standard Block
Specifications Heater Block Type
120 V Alternating Current Voltage (VAC)
Specifications Heater Wattage
40 W
Specifications Options
TCO Thermistor
Specifications Outlet Range
0 to 500 psig
Specifications Port Configuration
One Inlet Port, One Outlet Port
Specifications Seat Material
Polychlorotrifluoroethylene (PCTFE)
Specifications Temperature Rangeheating Type
75 to 175 ºF
Technical Data Inlet Pressure
Up to 6000 psig at 380 ºF (193 ºC)
Technical Data Operating Temperature
0 to 500 ºF | 260 ºC
Applications Applications
Analytical process sample conditioning systems:Petrochemical refineriesChemical production facilitiesPilot plants (chemical & petrochemical)LNG loading and off-loading pointsNatural gas pipeline sampling
