The GO Regulator HPR-2 Electrically Heated Single Stage Vaporizing Regulator is designed to provide precise heat to samples entering instrumentation systems, preheating liquids, preventing gas condensation, and vaporizing liquids for gas analysis. Featuring a modular design with a heat exchanger and pressure control sections, it ensures excellent outlet pressure stability. With CSA and ATEX certifications, this regulator prioritizes safety with electrical components housed securely in a flame-resistant condulet. The optional Thermal Cut Out heater cartridge enhances safety measures, making it ideal for analytical process sample conditioning in various industries.
Product Specifications
Features And Benefits Features And Benefits
Optional HASTELLOY® C and MONEL®Electropolished body with better than 25 Rafinish in diaphragm cavity for an optimal sealing surfaceBubble-tight shutoffModular pressure control and heat exchanger assemblies for easy maintenanceUnique spiral wrapped heat exchange element provides up to 100 square inches of heat transfer area.Optional TCO heating cartridgeINCONEL® diaphragm standard
Note Note
Contact the factory for any additional requirements.Units that will be used for flammable liquid or gas with fire point at 200ºC or below require the TCO Thermistor. It is also recommended to use the 1-PC body option. In addition, Tefzel and PCTFE seats in these units are recommended to use the captured vent cap option which provides for venting to a safe location.
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Tamper-Proof, Standard, Stainless Steel
Specifications Certifications
Canadian Standards Association (CSA) Certification # LR-82566-5 | Certification # TRL03ATEX11001X
Specifications Flow Coefficient Cv
0.06
Specifications Heater Block Porting
Standard Block
Specifications Heater Block Type
120 V Alternating Current Voltage (VAC)
Specifications Heater Wattage
50 W
Specifications Options
6000 psig Inlet with standard Thermistor (1-pc Assembly)
Specifications Outlet Range
0 to 50 psig
Specifications Port Configuration

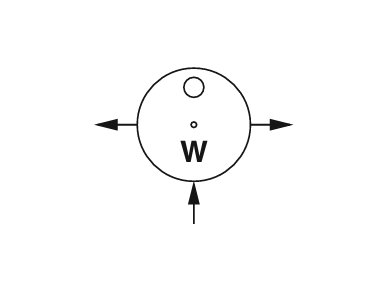

W - See Diagram for Port Configuration
Specifications Seat Material
Ceramic Filled Polytetrafluoroethylene (PTFE)
Specifications Temperature Rangeheating Type
75 to 175 ºF
Technical Data Inlet Pressure
Up to 6000 psig at 380 ºF (193 ºC)
Technical Data Operating Temperature
0 to 500 ºF | 260 ºC
Applications Applications
Analytical process sample conditioning systems:Petrochemical refineriesChemical production facilitiesPilot plants (chemical & petrochemical)LNG loading and off-loading pointsNatural gas pipeline sampling
