The GO Regulator HPR-2 is a premium electrically heated vaporizing regulator designed for heating samples in instrumentation systems. With a modular design featuring a heat exchanger and pressure control sections, the HPR-2 offers exceptional outlet pressure stability. Its unique spiral wrapped heat exchange element provides up to 100 square inches of heat transfer area, ensuring efficient performance. Certified by CSA and ATEX, this regulator includes safety features like a TCO heater cartridge for enhanced thermal protection. Ideal for analytical process sample conditioning systems in petrochemical refineries, chemical facilities, and more.
Product Specifications
Features And Benefits Features And Benefits
Optional HASTELLOY® C and MONEL®Electropolished body with better than 25 Rafinish in diaphragm cavity for an optimal sealing surfaceBubble-tight shutoffModular pressure control and heat exchanger assemblies for easy maintenanceUnique spiral wrapped heat exchange element provides up to 100 square inches of heat transfer area.Optional TCO heating cartridgeINCONEL® diaphragm standard
Note Note
Contact the factory for any additional requirements.Units that will be used for flammable liquid or gas with fire point at 200ºC or below require the TCO Thermistor. It is also recommended to use the 1-PC body option. In addition, Tefzel and PCTFE seats in these units are recommended to use the captured vent cap option which provides for venting to a safe location.
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Tamper-Proof, Standard, Stainless Steel
Specifications Certifications
Atmospheres Explosibles (ATEX) Directive 2014/34/EU | Canadian Standards Association (CSA) Certification # LR-82566-5 | Certification # TRL03ATEX11001X
Specifications Flow Coefficient Cv
0.06
Specifications Heater Block Porting
Standard Block
Specifications Heater Block Type
230 V Alternating Current Voltage (VAC)
Specifications Heater Wattage
100 W
Specifications Options
TCO Thermistor
Specifications Outlet Range
0 to 500 psig
Specifications Port Configuration

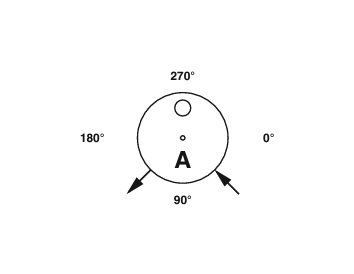

A - See Diagram for Port Configuration
Specifications Seat Material
Tefzel®
Specifications Temperature Rangeheating Type
24 to 80 ºC | 75 to 175 ºF
Technical Data Inlet Pressure
Up to 6000 psig at 380 ºF (193 ºC)
Technical Data Operating Temperature
0 to 500 ºF | 260 ºC
Applications Applications
Analytical process sample conditioning systems:Petrochemical refineriesChemical production facilitiesPilot plants (chemical & petrochemical)LNG loading and off-loading pointsNatural gas pipeline sampling
