GO Regulator HPR-2 Series LNG Vaporizer Regulator Assembly
GO Regulator HPR-2 Series LNG Vaporizer Regulator Assembly
SKU:GOP-04c416
Premium electrically heated LNG vaporizer regulator assembly for safe and efficient LNG product vaporization.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
GO Regulator HPR-2 Series LNG Vaporizer Regulator Assembly
$799.99
Quantity: 1
Claim Your Seller Account
GO Regulator HPR-2 Series LNG Vaporizer Regulator Assembly
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

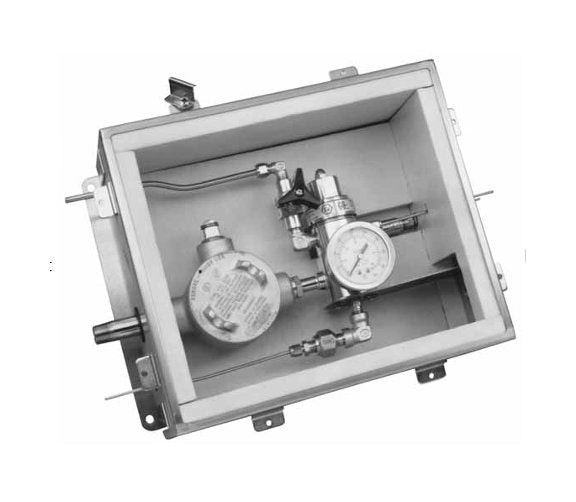

The GO Regulator HPR-2 Series LNG Vaporizer Regulator Assembly is a top-of-the-line solution for vaporizing LNG products for analytical purposes. Constructed with 316L stainless steel, it features a modularized design with an electrically heated section that offers precise temperature control. This assembly boasts certifications including ATEX, CSA, and meets standard Division 1 Electrical Code requirements. With bubble-tight shutoff, unique heat exchange elements, and optional materials like HASTELLOY® C-276, it ensures outstanding performance in LNG loading points, refineries, and gas pipelines.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Electrically Heated Certifications
Atmospheres Explosibles (ATEX) Directive 2014/34/EU | Canadian Standards Association (CSA) Certification # LR-82566-5 | Certification # TRL03ATEX11001X
Electrically Heated Construction For Electrically Heated
316L Stainless Steel
Electrically Heated Heating Capacity Ranges
40 W | 50 W | 100 W | 150 W
Electrically Heated Inlet Pressure For Electrically Heated
Up to 3600 psig at 380 ºF (193 ºC)
Electrically Heated Outlet Pressures For Electrically Heated
0 to 10 psig | 0 to 25 psig | 0 to 50 psig | 0 to 100 psig | 0 to 250 psig | 0 to 500 psig
Features And Benefits Features And Benefits
Optional HASTELLOY® C-276 and MONEL®Electropolished body with better than 25 Refinish in diaphragm cavity for an optimal sealing surfaceBubble-tight shutoffModular pressure control and heat exchanger assemblies for easy maintenanceUnique spiral wrapped heat exchange element provides up to 100 square inches of heat transfer areaAvailable in 120VAC or 230VAC and steam-heatedOptional TCO heating cartridge for T3 operationINCONEL® diaphragm standard
Note Note
Contact the factory for any additional requirements.Units that will be used for flammable liquid or gas with fire point at 200ºC or below require the TCO Thermistor. It is also recommended to use the 1-PC body option. In addition, Tefzel® and PCTFE seats in these units are recommended to use the captured vent cap option which provides for venting to a safe location.
Applications Applications
LNG loading and off-loading pointsPetrochemical refineriesChemical production facilitiesNatural gas pipelines
