GO Regulator LNG 100W Thermistor Vaporizer Regulator Assembly
GO Regulator LNG 100W Thermistor Vaporizer Regulator Assembly
SKU:GOP-7b2908
Efficient, safe, and reliable LNG vaporizer regulator assembly for controlled LNG vaporization in industry applications.
Regular price
$999.99
Regular price
Sale price
$999.99
Unit price
per
Initiate Order
GO Regulator LNG 100W Thermistor Vaporizer Regulator Assembly
$999.99
Quantity: 1
Claim Your Seller Account
GO Regulator LNG 100W Thermistor Vaporizer Regulator Assembly
$999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

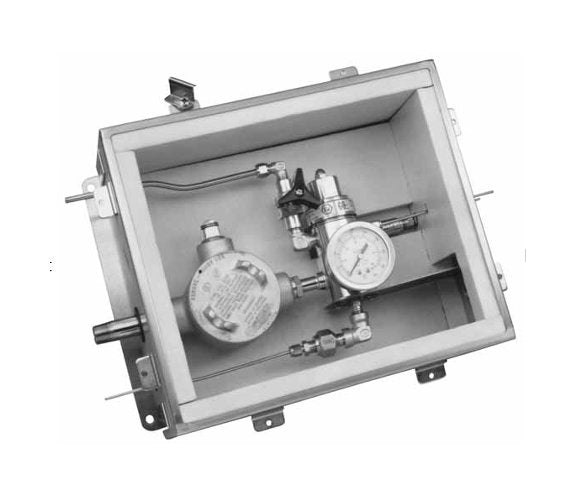

The GO Regulator LNG 100W Thermistor Vaporizer Regulator Assembly features a modularized design with an HPR-2 Series control valve for efficient vaporization of LNG products. With a TCO thermistor for safety, this assembly provides homogeneous samples under steady-state conditions. Constructed with durable materials and certifications for ATEX, CSA, and more, it offers bubble-tight shutoff and easy maintenance, making it ideal for LNG loading points, refineries, and gas pipelines.
Product Specifications
Electrically Heated Certifications
Atmospheres Explosibles (ATEX) Directive 2014/34/EU | Canadian Standards Association (CSA) Certification # LR-82566-5 | Certification # TRL03ATEX11001X
Electrically Heated Construction For Electrically Heated
316L Stainless Steel
Electrically Heated Heating Capacity Ranges
40 W | 50 W | 100 W | 150 W
Electrically Heated Inlet Pressure For Electrically Heated
Up to 3600 psig at 380 ºF (193 ºC)
Electrically Heated Outlet Pressures For Electrically Heated
0 to 10 psig | 0 to 25 psig | 0 to 50 psig | 0 to 100 psig | 0 to 250 psig | 0 to 500 psig
Features And Benefits Features And Benefits
Optional HASTELLOY® C-276 and MONEL®Electropolished body with better than 25 Refinish in diaphragm cavity for an optimal sealing surfaceBubble-tight shutoffModular pressure control and heat exchanger assemblies for easy maintenanceUnique spiral wrapped heat exchange element provides up to 100 square inches of heat transfer areaAvailable in 120VAC or 230VAC and steam-heatedOptional TCO heating cartridge for T3 operationINCONEL® diaphragm standard
Note Note
Contact the factory for any additional requirements.Units that will be used for flammable liquid or gas with fire point at 200ºC or below require the TCO Thermistor. It is also recommended to use the 1-PC body option. In addition, Tefzel® and PCTFE seats in these units are recommended to use the captured vent cap option which provides for venting to a safe location.
Specifications Basic Part Number
0-250 Psig Electronically Heated, Stainless Steel Diaphragm
Specifications Configuration
Stainless Steel Enclosure, All 1/4" Tube
Specifications Controller Type
Standard
Specifications Heater Block Type
120 V Alternating Current Voltage (VAC)
Specifications Power
100 W
Specifications Seat Material
Tefzel®
Specifications Temperature Range
75 to 175 ºF | 24 to 80 ºC
Specifications Thermistor Type
Thermally Protected (TCO)
Applications Applications
LNG loading and off-loading pointsPetrochemical refineriesChemical production facilitiesNatural gas pipelines
