GO Regulator LNG Vaporizer Assembly
GO Regulator LNG Vaporizer Assembly
SKU:GOP-42bc67
Achieve precise LNG vaporization with the GO Regulator Assembly. Stainless steel construction, certified for safety, and easy maintenance.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
GO Regulator LNG Vaporizer Assembly
$699.99
Quantity: 1
Claim Your Seller Account
GO Regulator LNG Vaporizer Assembly
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

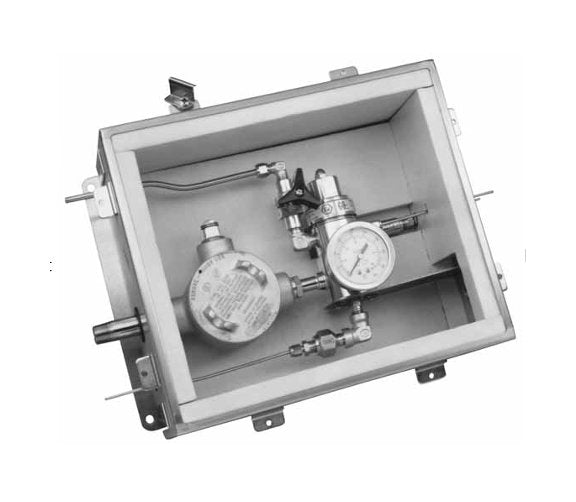

The GO Regulator LNG Vaporizer Assembly features the renowned HPR-2 Series heated pressure control valve, providing efficient vaporization of LNG products for analytical purposes. Constructed with 316L Stainless Steel, it offers precise outlet pressures from 0 to 500 psig and inlet pressure capabilities of up to 3600 psig. With certifications including ATEX and CSA, this assembly is ideal for LNG loading points, refineries, and natural gas pipelines. Its modular design, bubble-tight shutoff, and unique heat exchange element ensure reliable performance and easy maintenance. Optional TCO heating cartridge and INCONEL diaphragm enhance safety and usability.
Product Specifications
Electrically Heated Certifications
Atmospheres Explosibles (ATEX) Directive 2014/34/EU | Canadian Standards Association (CSA) Certification # LR-82566-5 | Certification # TRL03ATEX11001X
Electrically Heated Construction For Electrically Heated
316L Stainless Steel
Electrically Heated Heating Capacity Ranges
40 W | 50 W | 100 W | 150 W
Electrically Heated Inlet Pressure For Electrically Heated
Up to 3600 psig at 380 ºF (193 ºC)
Electrically Heated Outlet Pressures For Electrically Heated
0 to 10 psig | 0 to 25 psig | 0 to 50 psig | 0 to 100 psig | 0 to 250 psig | 0 to 500 psig
Features And Benefits Features And Benefits
Optional HASTELLOY® C-276 and MONEL®Electropolished body with better than 25 Refinish in diaphragm cavity for an optimal sealing surfaceBubble-tight shutoffModular pressure control and heat exchanger assemblies for easy maintenanceUnique spiral wrapped heat exchange element provides up to 100 square inches of heat transfer areaAvailable in 120VAC or 230VAC and steam-heatedOptional TCO heating cartridge for T3 operationINCONEL® diaphragm standard
Note Note
Contact the factory for any additional requirements.Units that will be used for flammable liquid or gas with fire point at 200ºC or below require the TCO Thermistor. It is also recommended to use the 1-PC body option. In addition, Tefzel® and PCTFE seats in these units are recommended to use the captured vent cap option which provides for venting to a safe location.
Applications Applications
LNG loading and off-loading pointsPetrochemical refineriesChemical production facilitiesNatural gas pipelines
