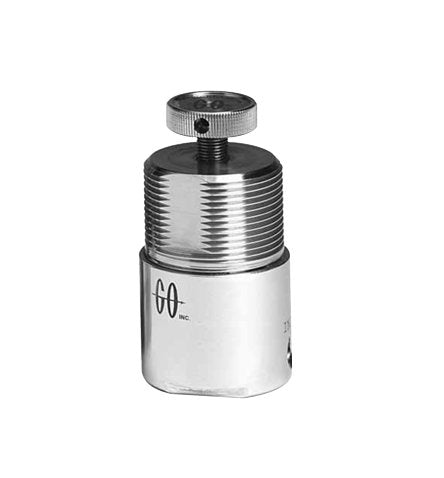

The GO Regulator MR-1 0.025 Cv Ultra Miniature Single Stage Pressure Regulator is designed for precise pressure control in analytical instrumentation applications where space is limited. With an internal volume of less than 2.7cc, 316L stainless steel construction, and a 20 µm inlet filter, this regulator ensures bubble-tight shutoff and offers outlet pressure ranges from 0 to 500 psig. The Tefzel® diaphragm facing material and Polytetrafluoroethylene (PTFE) O-Ring ensure compatibility with corrosive fluids. Ideal for rapid purge cycles, the MR-1 guarantees as low as 0.2% accuracy during supply pressure fluctuations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Specifications Features And Specifications
Gas or liquid service316L stainless steel constructionInternal volume is less than 2.7cc20 micron inlet filterBubble-tight shutoffOutlet pressure ranges are 0 - 10, 0 - 25, 0 - 50, 0 - 100, 0 - 250 and 0 - 500 psigCv flow coefficient 0.025 or 0.06Option: surface mount (for manifolds)Optional INCONEL® diaphragm
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
T-Handle
Specifications Diaphragm Backing Material
Stainless Steel
Specifications Diaphragm Facing Material
Tefzel® Ring
Specifications Diaphragm O Ring Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard, Nylon Diameter Slip Ring (170 °F Maximum Temperature)
Specifications Flow Coefficient Cv
0.025
Specifications Inlet Filter
20 µm
Specifications Internal Volume
< 2.7 cm³
Specifications Note
Contact the factory for any additional requirements.
Specifications Outlet Range
0 to 250 psig (Requires T-handle or Tamper-Proof)
Specifications Port Configuration
1
Specifications Port Types
Surface Mount
Specifications Seat Material
Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-F® 81)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
