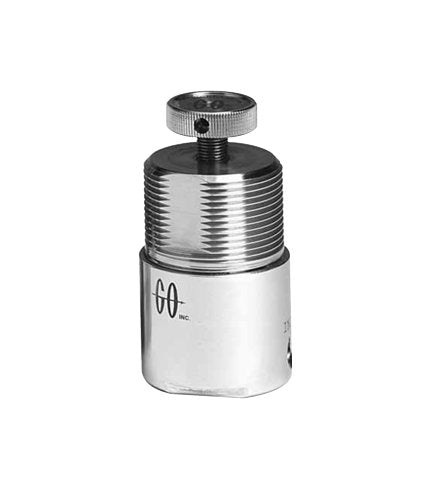

• GO Regulator MR-1 0.06 Cv Single Stage Pressure Regulator - Image 1

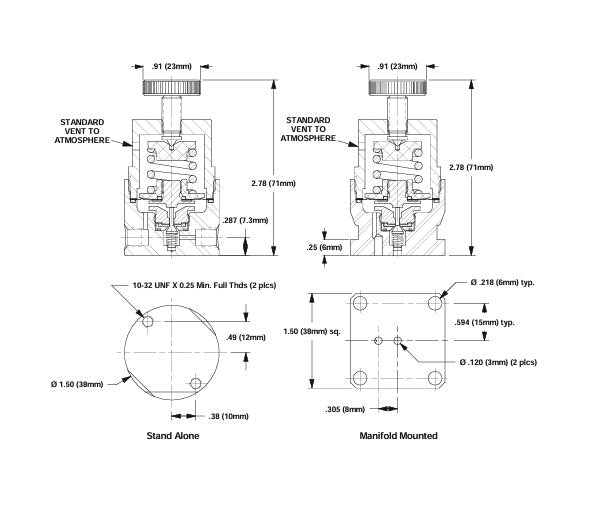

  • GO Regulator MR-1 0.06 Cv Single Stage Pressure Regulator - Image 2
  • GO Regulator MR-1 0.06 Cv Single Stage Pressure Regulator - Image 3
1 3
Del Val Controls, Inc →

GO Regulator MR-1 0.06 Cv Single Stage Pressure Regulator

GO Regulator MR-1 0.06 Cv Single Stage Pressure Regulator

GOP-8d991b

GO Regulator MR-1: Ultra-miniature 0.06 Cv pressure regulator for precise analytical instrumentation control. Stainless steel construction, 0-250 psig range.

$189.99
$189.99
Sale

Initiate Order

GO Regulator MR-1 0.06 Cv Single Stage Pressure Regulator

GO Regulator MR-1 0.06 Cv Single Stage Pressure Regulator

$189.99

Quantity: 1

Claim Your Seller Account

GO Regulator MR-1 0.06 Cv Single Stage Pressure Regulator

GO Regulator MR-1 0.06 Cv Single Stage Pressure Regulator

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The GO Regulator MR-1 is an ultra-miniature single-stage pressure regulator designed for precise pressure control in compact analytical instrumentation systems. Its low internal volume of less than 2.7cm³ allows for rapid purge cycles, making it ideal for applications requiring accuracy during supply pressure fluctuations. Constructed with 316L stainless steel and featuring a range of 0-250 psig, this regulator ensures bubble-tight shutoff and can handle corrosive fluids. With optional features available, the MR-1 offers versatility and customization to meet diverse institutional procurement needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features And Specifications Features And Specifications
Gas or liquid service316L stainless steel constructionInternal volume is less than 2.7cc20 micron inlet filterBubble-tight shutoffOutlet pressure ranges are 0 - 10, 0 - 25, 0 - 50, 0 - 100, 0 - 250 and 0 - 500 psigCv flow coefficient 0.025 or 0.06Option: surface mount (for manifolds)Optional INCONEL® diaphragm
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Tamper-Proof
Specifications Diaphragm Backing Material
Stainless Steel
Specifications Diaphragm Facing Material
Tefzel® Ring
Specifications Diaphragm O Ring Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard, Polyimide Diameter Slip Ring (High Temperature Service)
Specifications Flow Coefficient Cv
0.06
Specifications Inlet Filter
20 µm
Specifications Internal Volume
< 2.7 cm³
Specifications Note
Contact the factory for any additional requirements.
Specifications Outlet Range
0 to 250 psig (Requires T-handle or Tamper-Proof)
Specifications Port Configuration
Standard
Specifications Port Size
1/8 in
Specifications Port Types
Female National Pipe Tapered (all ports)
Specifications Seat Material
Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-F® 81)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
