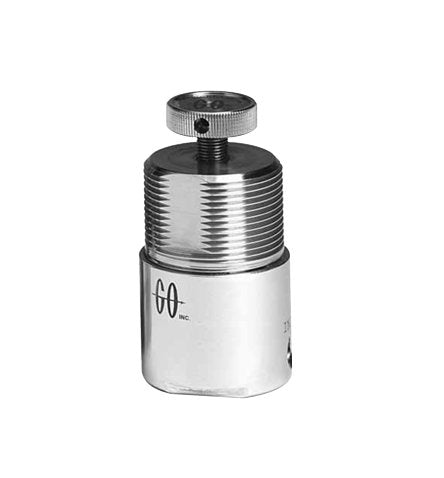

GO Regulator MR-1 0.06 Cv Ultra Miniature Single Stage Pressure Regulator
GO Regulator MR-1 0.06 Cv Ultra Miniature Single Stage Pressure Regulator
SKU:GOP-c7874c
GO Regulator MR-1 0.06 Cv Ultra Miniature Single Stage Pressure Regulator for precise pressure control in compact analytical instrumentation setups.
Regular price
$389.99
Regular price
Sale price
$389.99
Unit price
per
Initiate Order
GO Regulator MR-1 0.06 Cv Ultra Miniature Single Stage Pressure Regulator
$389.99
Quantity: 1
Claim Your Seller Account
GO Regulator MR-1 0.06 Cv Ultra Miniature Single Stage Pressure Regulator
$389.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

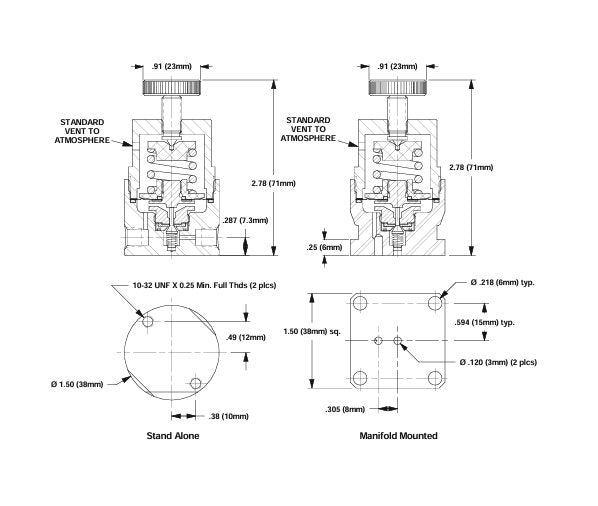

The GO Regulator MR-1 0.06 Cv Ultra Miniature Single Stage Pressure Regulator combines the proven design features of the CPR-1 & PR-1 Series regulators in a compact form suitable for surface, panel, or manifold mounting. With less than 2.7cc internal volume, it enables rapid purge cycles and precise pressure control. Constructed with 316L Stainless Steel, it can handle corrosive fluids with a standard 20 µm inlet filter for added protection. The Tefzel® seat material and nylon diaphragm ensure reliability and accuracy even during supply pressure fluctuations. Ideal for compact analytical instrumentation requiring optimal pressure control.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Specifications Features And Specifications
Gas or liquid service316L stainless steel constructionInternal volume is less than 2.7cc20 micron inlet filterBubble-tight shutoffOutlet pressure ranges are 0 - 10, 0 - 25, 0 - 50, 0 - 100, 0 - 250 and 0 - 500 psigCv flow coefficient 0.025 or 0.06Option: surface mount (for manifolds)Optional INCONEL® diaphragm
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Tamper-Proof
Specifications Diaphragm Backing Material
Stainless Steel
Specifications Diaphragm Facing Material
Tefzel® Ring
Specifications Diaphragm O Ring Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard, Nylon Diameter Slip Ring (170 °F Maximum Temperature)
Specifications Flow Coefficient Cv
0.06
Specifications Inlet Filter
20 µm
Specifications Internal Volume
< 2.7 cm³
Specifications Note
Contact the factory for any additional requirements.
Specifications Outlet Range
0 to 250 psig (Requires T-handle or Tamper-Proof)
Specifications Port Configuration
Standard
Specifications Port Size
1/8 in
Specifications Port Types
Female National Pipe Tapered (all ports)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
