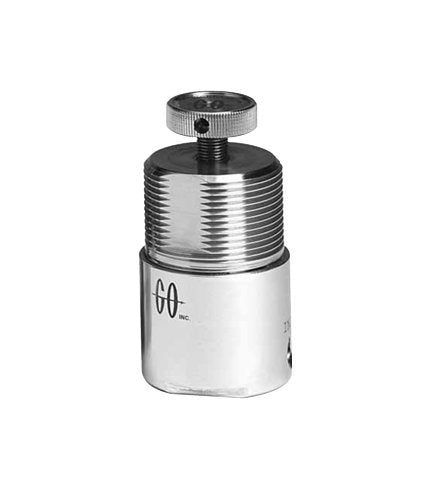

The GO Regulator MR-1 is a top-of-the-line ultra-miniature single-stage pressure regulator designed for precision control in compact and sophisticated analytical instrumentation systems. With an internal volume of less than 2.7 cm³ and a low Cv of 0.025, this regulator offers versatility and accuracy during supply pressure fluctuations. Constructed with 316L stainless steel and featuring a Polychlorotrifluoroethylene seat, Tefzel diaphragm facing material, and PTFE diaphragm O-ring, it ensures compatibility with corrosive fluids and durability in various services. Ideal for gas or liquid applications with inlet filter, bubble-tight shutoff, and a range of outlet pressure options from 0 to 500 psig, the MR-1 guarantees exceptional performance where space optimization is crucial. Contact the factory for any custom requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Specifications Features And Specifications
Gas or liquid service316L stainless steel constructionInternal volume is less than 2.7cc20 micron inlet filterBubble-tight shutoffOutlet pressure ranges are 0 - 10, 0 - 25, 0 - 50, 0 - 100, 0 - 250 and 0 - 500 psigCv flow coefficient 0.025 or 0.06Option: surface mount (for manifolds)Optional INCONEL® diaphragm
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
T-Handle
Specifications Diaphragm Backing Material
Stainless Steel
Specifications Diaphragm Facing Material
Tefzel® Ring
Specifications Diaphragm O Ring Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard, Nylon Diameter Slip Ring (170 °F Maximum Temperature)
Specifications Flow Coefficient Cv
0.025
Specifications Inlet Filter
20 µm
Specifications Internal Volume
< 2.7 cm³
Specifications Note
Contact the factory for any additional requirements.
Specifications Outlet Range
0 to 500 psig (Requires T-handle or Tamper-Proof)
Specifications Port Configuration
1
Specifications Port Types
Surface Mount
Specifications Seat Material
Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-F® 81)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
