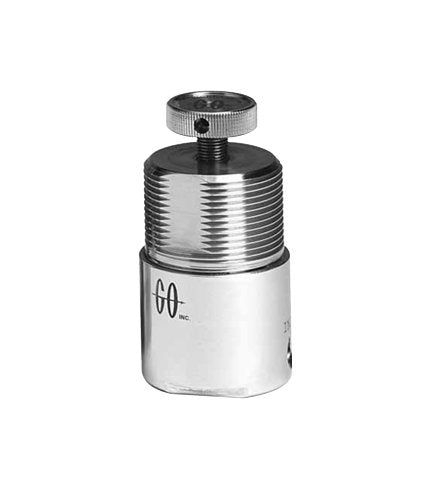

GO Regulator MR-1 Ultra Miniature Pressure Regulator
GO Regulator MR-1 Ultra Miniature Pressure Regulator
SKU:GOP-b12154
Precise ultra-miniature pressure regulator for compact systems requiring optimal pressure control. Ideal for corrosive fluids & rapid purge cycles.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
GO Regulator MR-1 Ultra Miniature Pressure Regulator
$129.99
Quantity: 1
Claim Your Seller Account
GO Regulator MR-1 Ultra Miniature Pressure Regulator
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator MR-1 is a cutting-edge ultra-miniature pressure regulator designed for precise pressure control in compact analytical instrumentation. With a Cv of 0.025, this regulator offers exceptional accuracy during supply pressure fluctuations. Constructed with high-quality materials like 316L Stainless Steel and featuring options like surface mounting, the MR-1 ensures versatility and reliability. Ideal for rapid purge cycles and various services, including corrosive fluids, this regulator delivers bubble-tight shutoff and outlet pressure ranges from 0 to 500 psig.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Specifications Features And Specifications

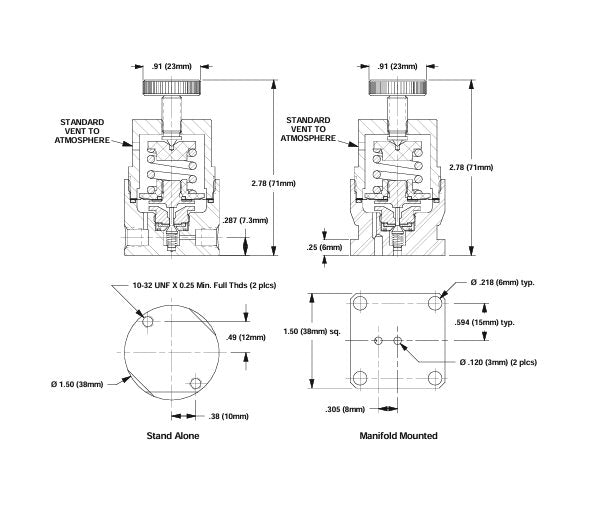

Gas or liquid service316L stainless steel constructionInternal volume is less than 2.7cc20 micron inlet filterBubble-tight shutoffOutlet pressure ranges are 0 - 10, 0 - 25, 0 - 50, 0 - 100, 0 - 250 and 0 - 500 psigCv flow coefficient 0.025 or 0.06Option: surface mount (for manifolds)Optional INCONEL® diaphragm
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
T-Handle
Specifications Diaphragm Backing Material
Stainless Steel
Specifications Diaphragm Facing Material
Tefzel® Ring
Specifications Diaphragm O Ring Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard, Polyimide Diameter Slip Ring (High Temperature Service)
Specifications Flow Coefficient Cv
0.025
Specifications Inlet Filter
20 µm
Specifications Internal Volume
< 2.7 cm³
Specifications Note
Contact the factory for any additional requirements.
Specifications Outlet Range
0 to 10 psig
Specifications Port Configuration
Standard
Specifications Port Size
1/8 in
Specifications Port Types
Female National Pipe Tapered (all ports)
Specifications Seat Material
Polyetheretherketone (PEEKâ¢)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
