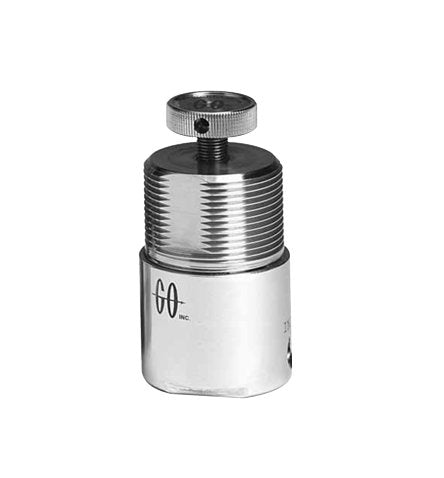

GO Regulator MR-1 Ultra Miniature Pressure Regulator
GO Regulator MR-1 Ultra Miniature Pressure Regulator
SKU:GOP-990c29
Achieve precise pressure control in compact spaces with the GO Regulator MR-1 Ultra Miniature Pressure Regulator.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
GO Regulator MR-1 Ultra Miniature Pressure Regulator
$189.99
Quantity: 1
Claim Your Seller Account
GO Regulator MR-1 Ultra Miniature Pressure Regulator
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator MR-1 Ultra Miniature Pressure Regulator is a compact and versatile solution designed for precise pressure control in analytical instrumentation and systems requiring rapid purge cycles. With an internal volume of less than 2.7cm³, this regulator offers exceptional performance in corrosive fluid applications. Constructed with 316L stainless steel and featuring a 20µm inlet filter, the MR-1 ensures bubble-tight shutoff and reliability in gas or liquid services. Its low Cv flow coefficient of 0.06 and customizable features make it ideal for space-restricted environments where accuracy is paramount.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Specifications Features And Specifications
Gas or liquid service316L stainless steel constructionInternal volume is less than 2.7cc20 micron inlet filterBubble-tight shutoffOutlet pressure ranges are 0 - 10, 0 - 25, 0 - 50, 0 - 100, 0 - 250 and 0 - 500 psigCv flow coefficient 0.025 or 0.06Option: surface mount (for manifolds)Optional INCONEL® diaphragm
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
T-Handle
Specifications Diaphragm Backing Material
Stainless Steel
Specifications Diaphragm Facing Material
Tefzel® Ring
Specifications Diaphragm O Ring Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard, Nylon Diameter Slip Ring (170 °F Maximum Temperature)
Specifications Flow Coefficient Cv
0.06
Specifications Inlet Filter
20 µm
Specifications Internal Volume
< 2.7 cm³
Specifications Note
Contact the factory for any additional requirements.
Specifications Outlet Range
0 to 500 psig (Requires T-handle or Tamper-Proof)
Specifications Port Configuration
1
Specifications Port Types
Surface Mount
Specifications Seat Material
Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-F® 81)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
