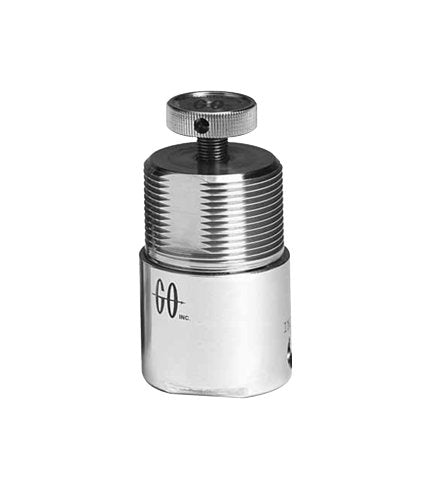

GO Regulator MR-1 Ultra Miniature Surface Mount Pressure Regulator
GO Regulator MR-1 Ultra Miniature Surface Mount Pressure Regulator
SKU:GOP-e2f3a1
Compact & precise GO Regulator MR-1 for analytical instrumentation, featuring bubble-tight shutoff and 0.2% accuracy. Ideal for space-constrained setups.
Regular price
$256.99
Regular price
Sale price
$256.99
Unit price
per
Initiate Order
GO Regulator MR-1 Ultra Miniature Surface Mount Pressure Regulator
$256.99
Quantity: 1
Claim Your Seller Account
GO Regulator MR-1 Ultra Miniature Surface Mount Pressure Regulator
$256.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator MR-1 Ultra Miniature Surface Mount Pressure Regulator is a compact and versatile solution designed for precise pressure control in analytical instrumentation. With < 2.7cm³ internal volume and 316L stainless steel construction, it offers bubble-tight shutoff and can handle corrosive fluids. The regulator's Tefzel® components ensure durability and compatibility with a wide range of services. Ideal for rapid purge cycles, this regulator provides accuracy of up to 0.2% during supply pressure variations, making it suitable for applications where space optimization is crucial.
Product Specifications
Features And Specifications Features And Specifications
Gas or liquid service316L stainless steel constructionInternal volume is less than 2.7cc20 micron inlet filterBubble-tight shutoffOutlet pressure ranges are 0 - 10, 0 - 25, 0 - 50, 0 - 100, 0 - 250 and 0 - 500 psigCv flow coefficient 0.025 or 0.06Option: surface mount (for manifolds)Optional INCONEL® diaphragm
Options Options
Certificate of Conformity
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Tamper-Proof
Specifications Diaphragm Backing Material
Inconel®
Specifications Diaphragm Facing Material
Tefzel® Ring
Specifications Diaphragm O Ring Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard, Nylon Diameter Slip Ring (170 °F Maximum Temperature)
Specifications Flow Coefficient Cv
0.025
Specifications Inlet Filter
20 µm
Specifications Internal Volume
< 2.7 cm³
Specifications Note
Contact the factory for any additional requirements.
Specifications Outlet Range
0 to 250 psig (Requires T-handle or Tamper-Proof)
Specifications Port Configuration
1
Specifications Port Types
Surface Mount
Specifications Seat Material
Tefzel®
