GO Regulator PR-1 316 Stainless Steel Pressure Regulator
GO Regulator PR-1 316 Stainless Steel Pressure Regulator
SKU:GOP-032086
GO Regulator PR-1: Versatile stainless steel pressure regulator for precise gas and liquid pressure control.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
GO Regulator PR-1 316 Stainless Steel Pressure Regulator
$189.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-1 316 Stainless Steel Pressure Regulator
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-1 Series is a versatile single-stage pressure reducing regulator designed for precision control in instrumentation sample systems and semiconductor processing gases. Constructed with 316L stainless steel components and INCONEL® diaphragms, this regulator ensures durability and optimal performance. With a flow coefficient (Cv) of 0.06, adjustable pressure ranges up to 50 psig, and operating temperatures from -40°F to +500°F, it offers reliable pressure control in gas or liquid services. Notable features include bubble-tight shutoff, various seat materials options, and a wide range of pressure control capabilities suitable for institutional and industrial applications.
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, INCONEL®, PTFE, and Tefzel® (or optional main seat material choice) only in flow streamStainless steel cap with SS adjusting screwInlet pressures of up to 6000 psiAdjustable outlet pressure ranges of 0-10, 0-25, 0-50, 0-100, 0-250, 0-500, and 0-750 psigOperating temperatures of -40 °F up to +500 °F (-40 °C up to +260 °C)Bubble-tight shutoff under most conditionsCv flow coefficients 0.025, 0.06, 0.20, and 0.50 (0.06 Standard)
Options Options
Wetted materials of construction: MONEL®, HASTELLOY®, Titanium and 6MOPanel mount (13/8" mounting hole)Special diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Facing Material
Metal Backing, Standard
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.06, Standard
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 50 psig
Specifications Port Configuration

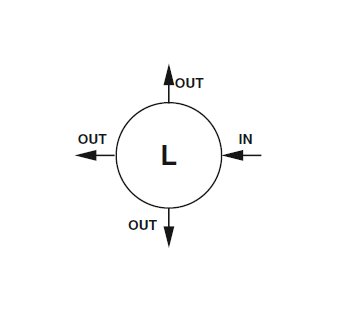

L - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Type Of Service
Gas or Liquid
Specifications Weight
1.9 lb | 0.86 kg
