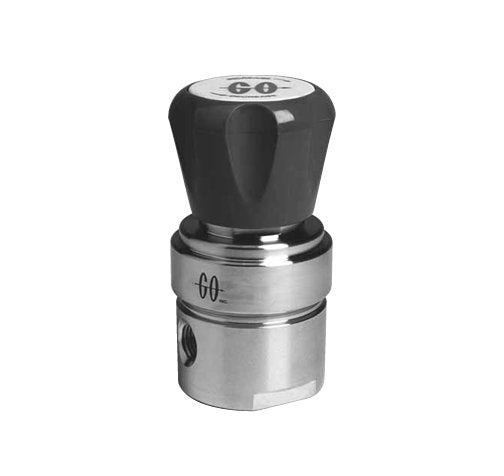

GO Regulator PR-1 316 Stainless Steel Single Stage Regulator
GO Regulator PR-1 316 Stainless Steel Single Stage Regulator
SKU:GOP-35e183
The GO Regulator PR-1: 316 stainless steel regulator for precise gas/liquid pressure control.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
GO Regulator PR-1 316 Stainless Steel Single Stage Regulator
$289.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-1 316 Stainless Steel Single Stage Regulator
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-1 is a high-performance 316 stainless steel pressure reducing regulator suitable for gas or liquid service. With a flow coefficient (Cv) of 0.06, it offers precise pressure control ranging from 0 to 50 psig. Featuring durable construction and a wide range of seat materials, orifice sizes, and pressure control options, this regulator ensures optimal performance in instrumentation sample systems, semiconductor processing gases, and other applications. Its stainless steel caps and adjusting screws prevent corrosion, making it ideal for institutional and government buyers seeking reliable and versatile pressure regulation.
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, INCONEL®, PTFE, and Tefzel® (or optional main seat material choice) only in flow streamStainless steel cap with SS adjusting screwInlet pressures of up to 6000 psiAdjustable outlet pressure ranges of 0-10, 0-25, 0-50, 0-100, 0-250, 0-500, and 0-750 psigOperating temperatures of -40 °F up to +500 °F (-40 °C up to +260 °C)Bubble-tight shutoff under most conditionsCv flow coefficients 0.025, 0.06, 0.20, and 0.50 (0.06 Standard)
Options Options
Wetted materials of construction: MONEL®, HASTELLOY®, Titanium and 6MOPanel mount (13/8" mounting hole)Special diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Facing Material
Metal Backing, Standard
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.06, Standard
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 50 psig
Specifications Port Configuration

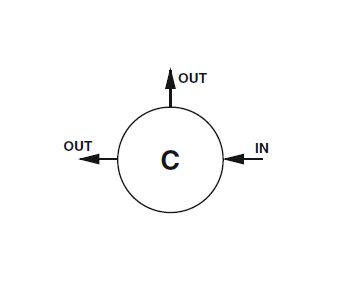

C - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Type Of Service
Gas or Liquid
Specifications Weight
1.9 lb | 0.86 kg
