GO Regulator PR-1 316 Stainless Steel Single Stage Regulator
GO Regulator PR-1 316 Stainless Steel Single Stage Regulator
SKU:GOP-ce9820
Versatile stainless steel regulator for precise pressure control in instrumentation and semiconductor applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
GO Regulator PR-1 316 Stainless Steel Single Stage Regulator
$199.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-1 316 Stainless Steel Single Stage Regulator
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-1 316 Stainless Steel Single Stage Regulator is a versatile pressure reducing regulator designed for instrumentation sample systems and semiconductor processing gases. With features like adjustable outlet pressure ranges, stainless steel construction, and a wide range of pressure control capabilities, it ensures precise pressure control in gas or liquid service applications. Meeting stringent standards for durability, performance, and reliability, this regulator is ideal for both consumer and institutional buyers seeking top-notch pressure control solutions.
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, INCONEL®, PTFE, and Tefzel® (or optional main seat material choice) only in flow streamStainless steel cap with SS adjusting screwInlet pressures of up to 6000 psiAdjustable outlet pressure ranges of 0-10, 0-25, 0-50, 0-100, 0-250, 0-500, and 0-750 psigOperating temperatures of -40 °F up to +500 °F (-40 °C up to +260 °C)Bubble-tight shutoff under most conditionsCv flow coefficients 0.025, 0.06, 0.20, and 0.50 (0.06 Standard)
Options Options
Wetted materials of construction: MONEL®, HASTELLOY®, Titanium and 6MOPanel mount (13/8" mounting hole)Special diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Facing Material
Metal Backing, Standard
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.06, Standard
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 10 psig
Specifications Port Configuration

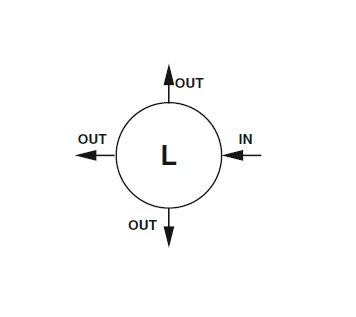

L - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Type Of Service
Gas or Liquid
Specifications Weight
1.9 lb | 0.86 kg
