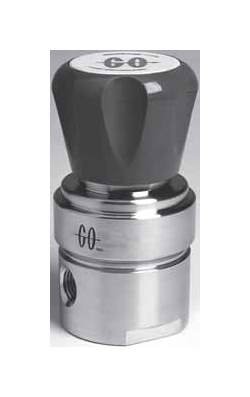

GO Regulator PR-1 Series Pressure Regulators
GO Regulator PR-1 Series Pressure Regulators
SKU:GOR-0241f1
Achieve precise pressure control with the GO Regulator PR-1 Series Pressure Regulators. Ideal for gas or liquid service, offering a wide pressure range (0-750 psig) with durability and corrosion resistance.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
GO Regulator PR-1 Series Pressure Regulators
$289.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-1 Series Pressure Regulators
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precise pressure control with the GO Regulator PR-1 Series Pressure Regulators. Crafted with 316L stainless steel, Teflon® diaphragm, and stainless steel caps for durability and corrosion resistance. This regulator offers a wide pressure range (0-750 psig) and is suitable for gas or liquid service. With features like electropolished body and multiple seat options, it ensures optimal performance and easy maintenance, meeting the needs of instrumentation sample systems and semiconductor processing gases.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Options 0

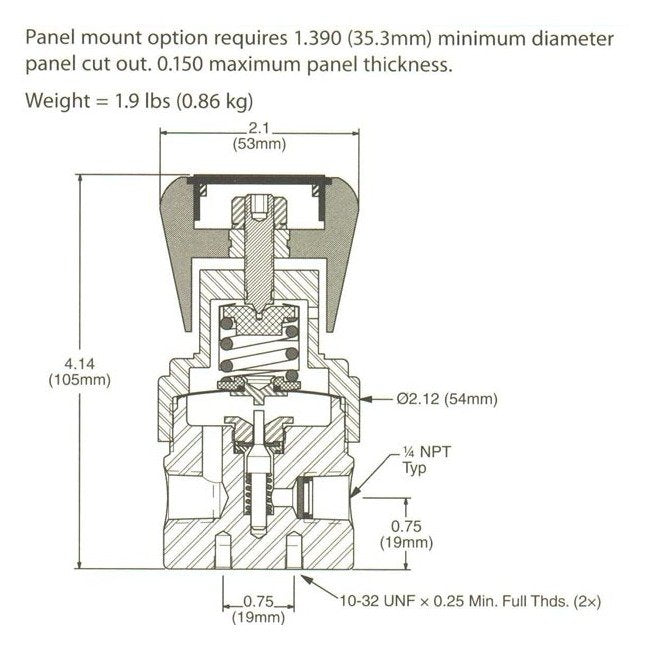

Wetted materials of construction: Monel®, Hastelloy®, and titaniumDiaphragm attached poppetSpecial fittingsDiaphragm assist spring for vacuum purgingPanel mount (1 3/8" mounting hole)Relief valvesSpecial diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Tamper-proof, stainless steel
Specifications Diaphragm Backing Material
Stainless Steel
Specifications Diaphragm Facing Material
Teflon®
Specifications Diaphragm Type
Standard diaphragm
Specifications Flow Coefficient Cv
0.20
Specifications Max Operating Pressure
6000 psig
Specifications Operating Temperature
-40 to 260 ºC | -40 to 500 ºF
Specifications Outlet Range
0 to 750 psig
Specifications Port Configuration
Standard
Specifications Process Port Type
1/4" FNPT standard (1/4" FNPT gauge ports)
Specifications Seat Material
Polyimide (metal knob)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra, Standard
Specifications Weight
1.9 lbs
