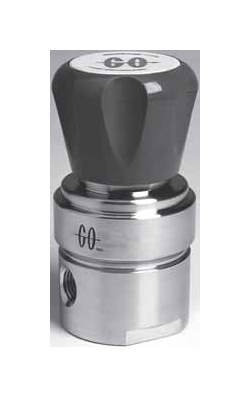

GO Regulator PR-1 Series Pressure Regulators
GO Regulator PR-1 Series Pressure Regulators
SKU:GOR-6e900e
Reliable pressure control with GO Regulator PR-1 Series for gas or liquid services. Ideal for institutional buyers.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
GO Regulator PR-1 Series Pressure Regulators
$249.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-1 Series Pressure Regulators
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet diverse pressure control needs with the GO Regulator PR-1 Series Pressure Regulators. Constructed with 316L stainless steel for durability, these regulators offer precise pressure adjustments for gas or liquid services. Features like electropolished body finish, stainless steel components, and various seat options ensure reliable performance, enhanced cleanliness, and maintenance of pressure within a range of 0 to 100 psig. With compliance to stringent industry standards, including Federal/DoD procurement requirements and FAR factors, these regulators are ideal for institutional and government procurement needs.
Product Specifications
Options 0
Wetted materials of construction: Monel®, Hastelloy®, and titaniumDiaphragm attached poppetSpecial fittingsDiaphragm assist spring for vacuum purgingPanel mount (1 3/8" mounting hole)Relief valvesSpecial diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly

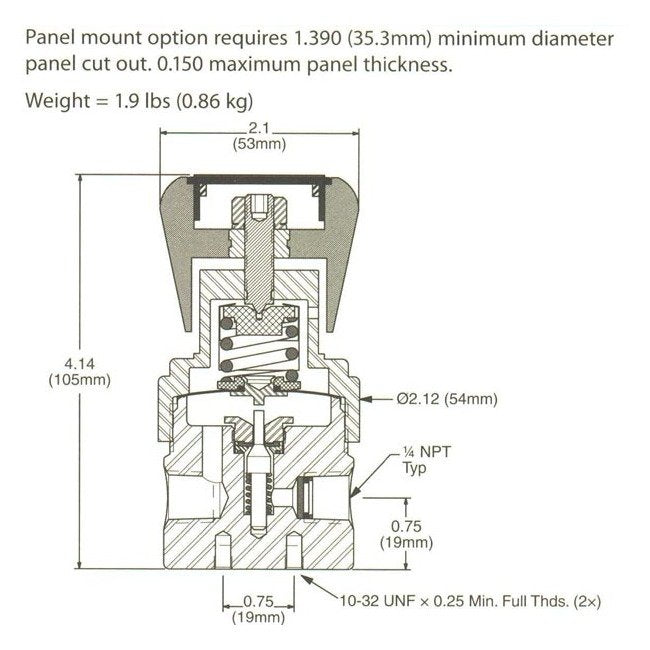

Panel mount, stainless steel
Specifications Diaphragm Backing Material
Stainless Steel
Specifications Diaphragm Facing Material
Teflon®
Specifications Diaphragm Type
Standard diaphragm
Specifications Flow Coefficient Cv
0.20
Specifications Max Operating Pressure
6000 psig
Specifications Operating Temperature
-40 to 80 ºC | -40 to 175 ºF
Specifications Outlet Range
0 to 100 psig
Specifications Port Configuration
Standard
Specifications Process Port Type
1/4" FNPT standard (1/4" FNPT gauge ports)
Specifications Seat Material
PCTFE (formerly Kel-F® 81)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra, Standard
Specifications Weight
1.9 lbs
