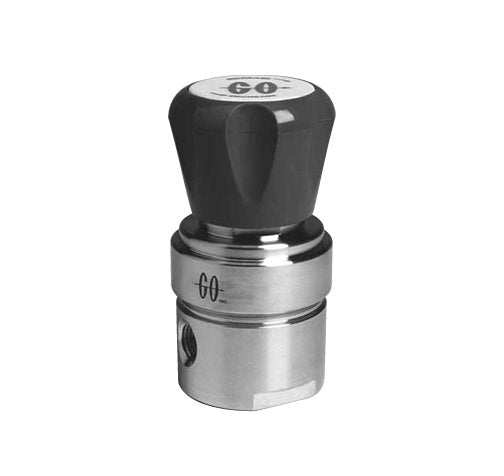

GO Regulator PR-1 Stainless Steel Single Stage Regulator
GO Regulator PR-1 Stainless Steel Single Stage Regulator
SKU:GOP-816220
Ensure precise pressure control with the GO Regulator PR-1 Stainless Steel Single Stage Regulator. Ideal for gas or liquid services with a Cv of 0.025 and operating temperatures up to 500°F.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
GO Regulator PR-1 Stainless Steel Single Stage Regulator
$249.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-1 Stainless Steel Single Stage Regulator
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet diverse pressure control needs with the GO Regulator PR-1 Stainless Steel Single Stage Regulator. Ideal for instrumentation sample systems and semiconductor processing gases, this regulator offers exceptional durability with its 316L Stainless Steel construction. With a Cv of 0.025, adjustable outlet pressure ranges, and operating temperatures up to 500°F, this regulator provides precise control in gas or liquid services. Features include stainless steel cap, bubble-tight shutoff, and a wide range of pressure control capabilities, making it suitable for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, INCONEL®, PTFE, and Tefzel® (or optional main seat material choice) only in flow streamStainless steel cap with SS adjusting screwInlet pressures of up to 6000 psiAdjustable outlet pressure ranges of 0-10, 0-25, 0-50, 0-100, 0-250, 0-500, and 0-750 psigOperating temperatures of -40 °F up to +500 °F (-40 °C up to +260 °C)Bubble-tight shutoff under most conditionsCv flow coefficients 0.025, 0.06, 0.20, and 0.50 (0.06 Standard)
Options Options
Wetted materials of construction: MONEL®, HASTELLOY®, Titanium and 6MOPanel mount (13/8" mounting hole)Special diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relievingPressure test certificate
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Facing Material
Metal Backing, Standard
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.025
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 100 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Type Of Service
Gas or Liquid
Specifications Weight
1.9 lb | 0.86 kg
