GO Regulator PR-1 Stainless Steel Single Stage Regulator
GO Regulator PR-1 Stainless Steel Single Stage Regulator
SKU:GOP-1fcfcf
GO Regulator PR-1 Stainless Steel Regulator for precise pressure control in instrumentation and semiconductor applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
GO Regulator PR-1 Stainless Steel Single Stage Regulator
$249.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-1 Stainless Steel Single Stage Regulator
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-1 Single Stage Pressure Regulator is a versatile solution for precise pressure control in instrumentation sample systems and semiconductor processing gases. Constructed with 316L stainless steel and featuring INCONEL® diaphragms, this regulator offers adjustable outlet pressure ranges up to 250 psig, perfect for low to moderate flow applications in gas or liquid services. With a flow coefficient (Cv) of 0.025, temperature range from -40°F to +500°F, and bubble-tight shutoff capability, the PR-1 ensures reliable performance. Additional options include wetted materials like MONEL®, HASTELLOY®, and Titanium, making it adaptable to various industrial settings.
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, INCONEL®, PTFE, and Tefzel® (or optional main seat material choice) only in flow streamStainless steel cap with SS adjusting screwInlet pressures of up to 6000 psiAdjustable outlet pressure ranges of 0-10, 0-25, 0-50, 0-100, 0-250, 0-500, and 0-750 psigOperating temperatures of -40 °F up to +500 °F (-40 °C up to +260 °C)Bubble-tight shutoff under most conditionsCv flow coefficients 0.025, 0.06, 0.20, and 0.50 (0.06 Standard)
Options Options
Wetted materials of construction: MONEL®, HASTELLOY®, Titanium and 6MOPanel mount (13/8" mounting hole)Special diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Facing Material
Metal Backing, Standard
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.025
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 250 psig
Specifications Port Configuration

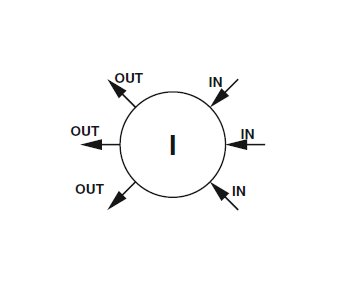

I - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Type Of Service
Gas or Liquid
Specifications Weight
1.9 lb | 0.86 kg
