The GO Regulator PR-1 Stainless Steel Single Stage Regulator - Precise pressure control for instrumentation and semiconductor applications.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The GO Regulator PR-1 Stainless Steel Single Stage Regulator is a versatile instrument designed for precise pressure control in instrumentation sample systems and semiconductor processing gases. Crafted with 316L stainless steel components, it ensures durability and resistance to atmospheric corrosion. With a flow coefficient (Cv) of 0.5, adjustable outlet pressure ranges, and operating temperatures ranging from -40°F to +500°F, it offers exceptional control in gas or liquid service. This regulator complies with industry standards, making it ideal for various applications requiring reliable pressure management.

Product Specifications

Features And Specifications Features And Specifications

316L stainless steel, INCONELÂ®, PTFE, and TefzelÂ® (or optional main seat material choice) only in flow streamStainless steel cap with SS adjusting screwInlet pressures of up to 6000 psiAdjustable outlet pressure ranges of 0-10, 0-25, 0-50, 0-100, 0-250, 0-500, and 0-750 psigOperating temperatures of -40 Â°F up to +500 Â°F (-40 Â°C up to +260 Â°C)Bubble-tight shutoff under most conditionsCv flow coefficients 0.025, 0.06, 0.20, and 0.50 (0.06 Standard)

Options Options

Wetted materials of construction: MONELÂ®, HASTELLOYÂ®, Titanium and 6MOPanel mount (13/8" mounting hole)Special diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving

Specifications Body Material

316L Stainless Steel, Stainless Steel Diaphragm

Specifications Cap Assembly

Standard, Stainless Steel

Specifications Diaphragm Backing Material

Polytetrafluoroethylene (PTFE)

Specifications Diaphragm Facing Material

Metal Backing, Standard

Specifications Diaphragm Type

Standard Diaphragm

Specifications Flow Coefficient Cv

0.5

Specifications Gauge Port Size

1/4 in

Specifications Gauge Port Types

Female National Pipe Tapered (FNPT) Gauge Port, Standard

Specifications Inlet Filter

20 Âµm

Specifications Outlet Range

0 to 100 psig

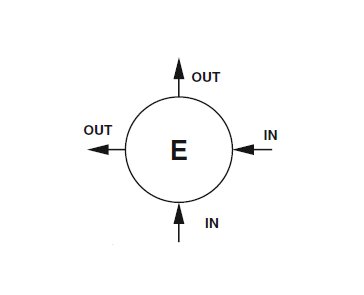

Specifications Port Configuration

E - See Diagram for Port Configuration

Specifications Process Port Size

1/4 in

Specifications Process Port Types

Female National Pipe Tapered (FNPT)

Specifications Seat Material

Polyetheretherketone (PEEK) Low Temp Service, Plastic Knob

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra | Standard

Specifications Type Of Service

Gas or Liquid

Specifications Weight

1.9 lb | 0.86 kg
