The GO Regulator PR-1 is a high-performance single stage pressure regulator crafted from 316L Stainless Steel, designed to meet the stringent demands of instrumentation sample systems and semiconductor processing gases. With a 0.5 Cv flow coefficient, adjustable outlet pressure ranges up to 50 psig, and operating temperatures ranging from -40°F to +500°F, this regulator offers precise pressure control for gas or liquid services. Its robust construction, featuring INCONEL® diaphragms, Tefzel® seat material, and stainless steel components, ensures durability, reliability, and corrosion resistance. Additionally, with compliance to industry standards and customizable options including different wetted materials and mounting configurations, the GO Regulator PR-1 is ideal for a wide range of industrial applications.
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, INCONEL®, PTFE, and Tefzel® (or optional main seat material choice) only in flow streamStainless steel cap with SS adjusting screwInlet pressures of up to 6000 psiAdjustable outlet pressure ranges of 0-10, 0-25, 0-50, 0-100, 0-250, 0-500, and 0-750 psigOperating temperatures of -40 °F up to +500 °F (-40 °C up to +260 °C)Bubble-tight shutoff under most conditionsCv flow coefficients 0.025, 0.06, 0.20, and 0.50 (0.06 Standard)
Options Options
Wetted materials of construction: MONEL®, HASTELLOY®, Titanium and 6MOPanel mount (13/8" mounting hole)Special diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Facing Material
Metal Backing, Standard
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.5
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 50 psig
Specifications Port Configuration

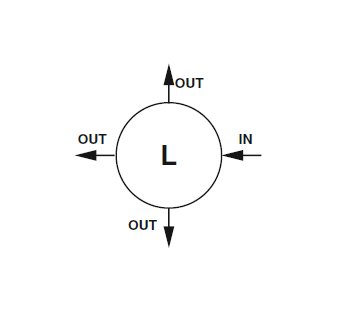

L - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Type Of Service
Gas or Liquid
Specifications Weight
1.9 lb | 0.86 kg
