GO Regulator PR-1 Stainless Steel Single Stage Regulator
GO Regulator PR-1 Stainless Steel Single Stage Regulator
SKU:GOP-976adb
Precision control in instrumentation and semiconductor applications. 316L Stainless Steel construction for durability and reliability.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
GO Regulator PR-1 Stainless Steel Single Stage Regulator
$259.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-1 Stainless Steel Single Stage Regulator
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-1 Series is a versatile pressure reducing regulator designed for precision control in instrumentation sample systems and semiconductor processing gases. Constructed with 316L Stainless Steel, this regulator offers durability and corrosion resistance. With a range of seat materials, orifice sizes, and pressure control options, it ensures reliable performance at up to 6000 psig inlet pressures and operating temperatures of up to 500°F. Features include bubble-tight shutoff, Cv flow coefficient of 0.06, and adjustable outlet pressure ranges. Ideal for gas or liquid services, this regulator is perfect for a wide range of institutional and industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, INCONEL®, PTFE, and Tefzel® (or optional main seat material choice) only in flow streamStainless steel cap with SS adjusting screwInlet pressures of up to 6000 psiAdjustable outlet pressure ranges of 0-10, 0-25, 0-50, 0-100, 0-250, 0-500, and 0-750 psigOperating temperatures of -40 °F up to +500 °F (-40 °C up to +260 °C)Bubble-tight shutoff under most conditionsCv flow coefficients 0.025, 0.06, 0.20, and 0.50 (0.06 Standard)
Options Options
Wetted materials of construction: MONEL®, HASTELLOY®, Titanium and 6MOPanel mount (13/8" mounting hole)Special diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Facing Material
Metal Backing, Standard
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.06, Standard
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 25 psig
Specifications Port Configuration

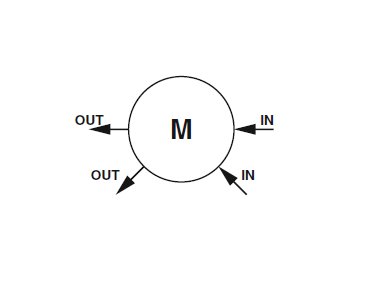

M - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Type Of Service
Gas or Liquid
Specifications Weight
1.9 lb | 0.86 kg
