GO Regulator PR-2 Series Pressure Regulators
GO Regulator PR-2 Series Pressure Regulators
SKU:GOR-53870e
Reliable pressure regulation for gas and liquid applications. Compact design with precise control. Ideal for institutional procurement.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
GO Regulator PR-2 Series Pressure Regulators
$149.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-2 Series Pressure Regulators
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-2 Series Pressure Regulators offer precise pressure control in gas and liquid applications, featuring a compact brass body, stainless steel diaphragm, and Teflon lining for superior performance. With pressure ranges from 0 - 750 psig, bubble-tight shutoff, and a temperature range of -40° F to +175° F, these regulators are designed for carrier gas pressure regulation and low pressure air systems. The PR-2 Series is built to meet the rigorous standards of instrumentation services, making it an ideal choice for government and institutional procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Options 0

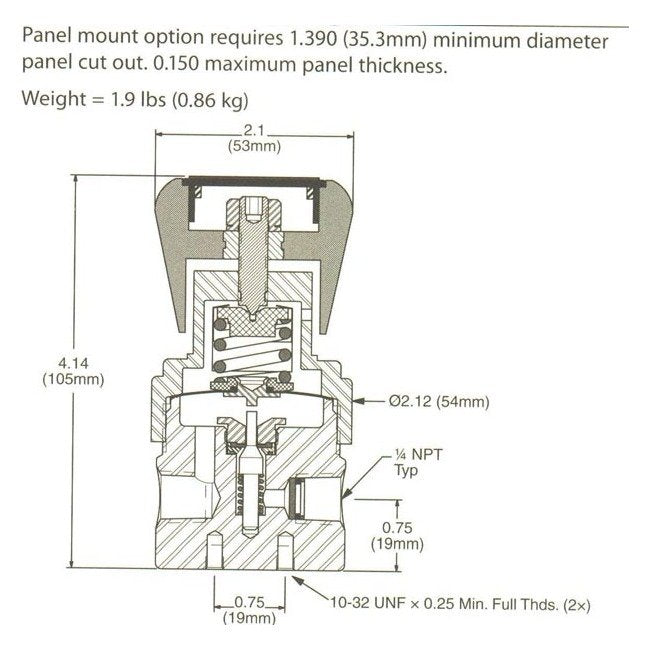

1/8" or 3/8" FNPT connectionsPanel mount (requires 1 3/8" mounting hole)Extra portsPressure gauges
Specifications Body Material
Brass
Specifications Cap Assembly
Standard, aluminum
Specifications Diaphragm Facingbacking Material
Teflon®/Stainless Steel
Specifications Diaphragm Type
Standard diaphragm
Specifications Flow Coefficient Cv
0.025
Specifications Max Operating Pressure
3600 psig
Specifications Operating Temperature
-40 to 66 ºC | -40 to 150 ºF
Specifications Optional Cap Finish
Chrome plated | Electroless Nickel plated
Specifications Outlet Range
0 to 25 psig
Specifications Port Configuration
Standard
Specifications Process Port Type
1/4" FNPT (1/4" FNPT gauge ports), standard
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra, Standard
Specifications Weight
1.9 lbs
