GO Regulator PR-2 Series Pressure Regulators
GO Regulator PR-2 Series Pressure Regulators
SKU:GOR-87129f
Ensure precise gas or liquid pressure control with GO Regulator PR-2 Series. Brass construction, Teflon-lined diaphragm, ideal for institutional use.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
GO Regulator PR-2 Series Pressure Regulators
$149.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-2 Series Pressure Regulators
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

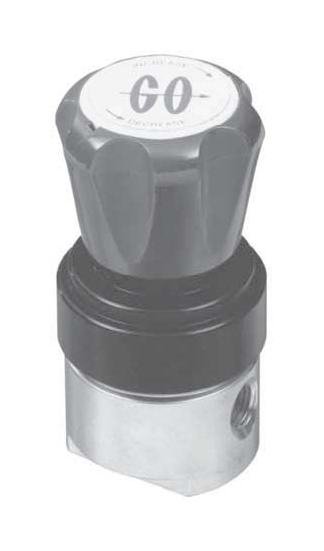

Experience optimal pressure control with the GO Regulator PR-2 Series Pressure Regulators. Constructed with brass and featuring a Teflon-lined stainless steel diaphragm, these regulators ensure precise gas or liquid service. With an outlet pressure range of 0-10 psig, operating temperatures from -40 to 66 ºC, and superior diaphragm finish, these regulators offer reliable performance in diverse applications. Additional options like panel mounting and extra ports enhance flexibility, making them ideal for institutional and industrial requirements.
Product Specifications
Options 0
1/8" or 3/8" FNPT connectionsPanel mount (requires 1 3/8" mounting hole)Extra portsPressure gauges
Specifications Body Material
Brass
Specifications Cap Assembly
Panel mount, aluminum
Specifications Diaphragm Facingbacking Material
Teflon®/Stainless Steel
Specifications Diaphragm Type
Standard diaphragm
Specifications Flow Coefficient Cv
0.20
Specifications Max Operating Pressure
3600 psig
Specifications Operating Temperature
-40 to 66 ºC | -40 to 150 ºF
Specifications Optional Cap Finish
Chrome plated | Electroless Nickel plated
Specifications Outlet Range
0 to 10 psig
Specifications Port Configuration
Standard
Specifications Process Port Type
1/4" FNPT (1/4" FNPT gauge ports), standard
Specifications Seat Material
High density Teflon®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra, Standard
Specifications Weight
1.9 lbs
