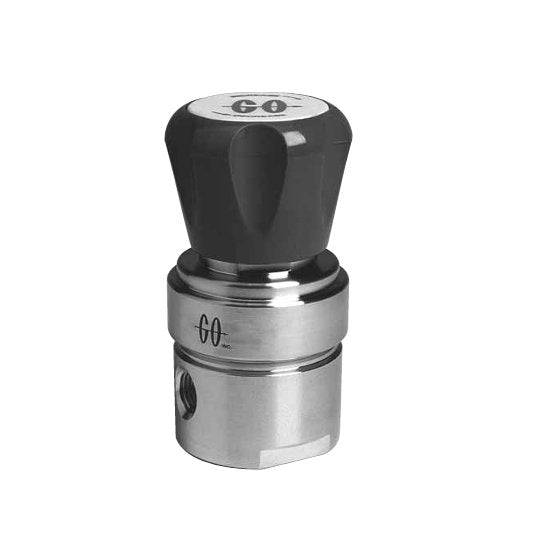

GO Regulator PR-5 Adjustable Pressure Reducing Regulator
GO Regulator PR-5 Adjustable Pressure Reducing Regulator
SKU:GOP-c68525
GO Regulator PR-5: High-flow pressure reducing regulator for precise control in gas and liquid systems. Ideal for line regulator applications.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
GO Regulator PR-5 Adjustable Pressure Reducing Regulator
$279.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-5 Adjustable Pressure Reducing Regulator
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator is a robust solution designed for high-flow applications while ensuring excellent sensitivity and regulation. Suitable for both gas and liquid systems compatible with its stainless steel construction, this regulator offers a reliable performance even at low flow rates. With features like bubble-tight shutoff, stainless steel components, and a wide operating temperature range, this regulator is ideal for line regulator applications where precise control is essential. The PR-5 series inherits the trusted design of the PR-1 series, maintaining compatibility for seamless unit interchange, especially for enhanced control at high flow rates.
Product Specifications
Features And Specifications Features And Specifications
High flow capability in compact sizeMinimum droop with large flow increasesBubble-tight shutoffStainless steel cap and adjusting screwMaterials of construction: stainless steel, Brass, MONEL®, HASTELLOY® C, Brass chrome platedOperating temperatures up to +400 °F (+204 °C)Ideal for line regulator applicationsPolytetrafluoroethylene (PTFE)/Fluorocarbon (FKM) diaphragm standard up to 50 psigInlet pressure 300 psigAdjustable outlet ranges 0-10, 0-25, 0-50, 0-100, and 0-250 psig
Options Options
Panel mount (requires 1 3/8" mounting hole)Extra portsPressure gaugesCaptured vent
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Metal Backing
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.2
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 100 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Perfluoroelastomer (FFKM)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Weight
1.9 lb | 0.86 kg
