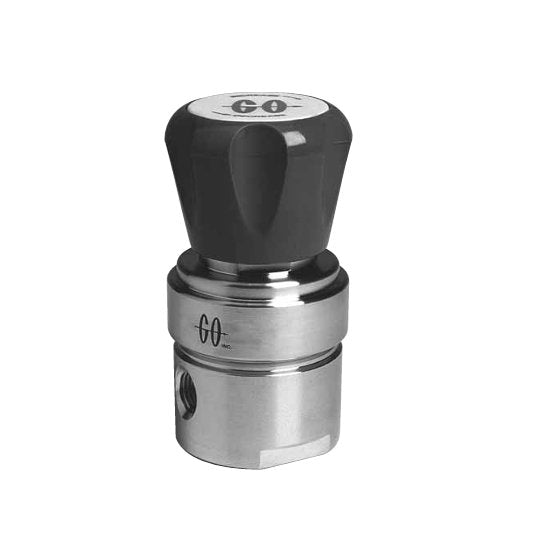

GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator
GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator
SKU:GOP-65dd67
Achieve precise pressure control and high flow capacity with the GO Regulator PR-5. Ideal for gas and liquid systems, featuring stainless steel construction and fluorocarbon diaphragm.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator
$189.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precise pressure control and high flow capacity with the GO Regulator PR-5. Designed for both gas and liquid systems, this regulator ensures optimal performance with stainless steel construction, fluorocarbon diaphragm, and adjustable outlet ranges. Enjoy bubble-tight shutoff, compact size, and compatibility with various materials, making it ideal for institutional applications requiring robust pressure regulation.
Product Specifications
Features And Specifications Features And Specifications
High flow capability in compact sizeMinimum droop with large flow increasesBubble-tight shutoffStainless steel cap and adjusting screwMaterials of construction: stainless steel, Brass, MONEL®, HASTELLOY® C, Brass chrome platedOperating temperatures up to +400 °F (+204 °C)Ideal for line regulator applicationsPolytetrafluoroethylene (PTFE)/Fluorocarbon (FKM) diaphragm standard up to 50 psigInlet pressure 300 psigAdjustable outlet ranges 0-10, 0-25, 0-50, 0-100, and 0-250 psig
Options Options
Panel mount (requires 1 3/8" mounting hole)Extra portsPressure gaugesCaptured vent
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Panel Mount, Stainless Steel
Specifications Diaphragm Backing Material
Metal Backing
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.2
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 100 psig

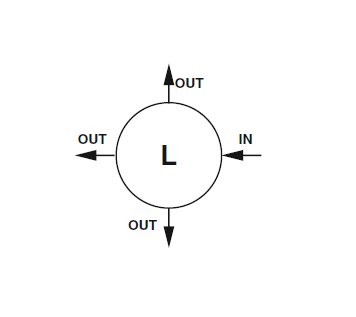

Specifications Port Configuration
L - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Fluorocarbon (FKM) (Standard)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Weight
1.9 lb | 0.86 kg
