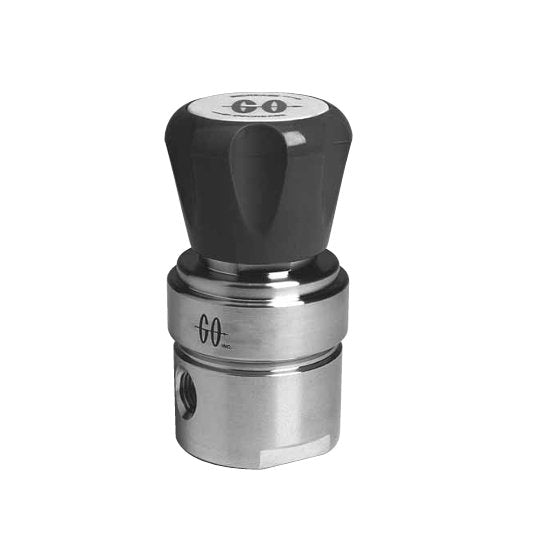

GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator (0-10 psig)

Name: GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator (0-10 psig)
Brand: Del Val Controls, Inc
SKU: GOP-fd5761
Price: 199.99 USD
Availability: OutOfStock

SKU:GOP-fd5761

High-flow precision: GO Regulator PR-5 for gas/liquid systems, stainless steel construction, bubble-tight shutoff, ideal for line regulator applications.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator is engineered for high-flow applications, ensuring precise regulation and sensitivity. Designed for both gas and liquid systems compatible with its stainless steel construction, this regulator offers a compact size with high flow capacity. With features like bubble-tight shutoff, stainless steel components, and a PTFE diaphragm, it guarantees reliable performance. Ideal for line regulator applications, it meets rigorous industry standards for durability and functionality.

Product Specifications

Features And Specifications Features And Specifications

High flow capability in compact sizeMinimum droop with large flow increasesBubble-tight shutoffStainless steel cap and adjusting screwMaterials of construction: stainless steel, Brass, MONELÂ®, HASTELLOYÂ® C, Brass chrome platedOperating temperatures up to +400 Â°F (+204 Â°C)Ideal for line regulator applicationsPolytetrafluoroethylene (PTFE)/Fluorocarbon (FKM) diaphragm standard up to 50 psigInlet pressure 300 psigAdjustable outlet ranges 0-10, 0-25, 0-50, 0-100, and 0-250 psig

Options Options

Panel mount (requires 1 3/8" mounting hole)Extra portsPressure gaugesCaptured vent

Specifications Body Material

316L Stainless Steel, Stainless Steel Diaphragm

Specifications Cap Assembly

Standard, Stainless Steel

Specifications Diaphragm Backing Material

Metal Backing

Specifications Diaphragm Facing Material

Polytetrafluoroethylene (PTFE)

Specifications Diaphragm Type

Standard Diaphragm

Specifications Flow Coefficient Cv

0.2

Specifications Gauge Port Size

1/4 in

Specifications Gauge Port Types

Female National Pipe Tapered (FNPT) Gauge Port

Specifications Inlet Filter

20 Âµm

Specifications Outlet Range

0 to 10 psig

Specifications Port Configuration

Standard

Specifications Process Port Size

1/4 in

Specifications Process Port Types

Female National Pipe Tapered (FNPT)

Specifications Seat Material

Fluorocarbon (FKM) (Standard)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra | Standard

Specifications Weight

1.9 lb | 0.86 kg

GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator (0-10 psig)
