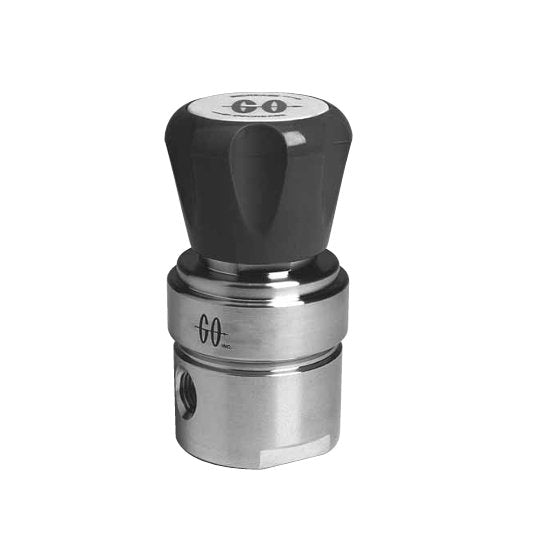

GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator
GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator
SKU:GOP-2092eb
High-flow, precise pressure control regulator for gas and liquid systems. Durable stainless steel construction, adjustable range 0-100 psig, ideal for institutional use.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator
$249.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator is a top choice for high-flow applications, offering excellent sensitivity and regulation. Ideal for gas and liquid systems, it maintains precise control even at low flow rates. Constructed with 316L stainless steel and a stainless steel diaphragm, it ensures durability and reliability. Designed to handle inlet pressures up to 300 psig and adjustable outlet ranges from 0 to 100 psig, this regulator guarantees optimal performance in line regulator applications. With features like bubble-tight shutoff, high flow capacity in a compact size, and compatibility with a wide range of materials, it meets the stringent requirements of institutional buyers.
Product Specifications
Features And Specifications Features And Specifications
High flow capability in compact sizeMinimum droop with large flow increasesBubble-tight shutoffStainless steel cap and adjusting screwMaterials of construction: stainless steel, Brass, MONEL®, HASTELLOY® C, Brass chrome platedOperating temperatures up to +400 °F (+204 °C)Ideal for line regulator applicationsPolytetrafluoroethylene (PTFE)/Fluorocarbon (FKM) diaphragm standard up to 50 psigInlet pressure 300 psigAdjustable outlet ranges 0-10, 0-25, 0-50, 0-100, and 0-250 psig
Options Options
Panel mount (requires 1 3/8" mounting hole)Extra portsPressure gaugesCaptured vent
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Metal Backing
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.2
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 100 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Fluorocarbon (FKM) (Standard)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Weight
1.9 lb | 0.86 kg
