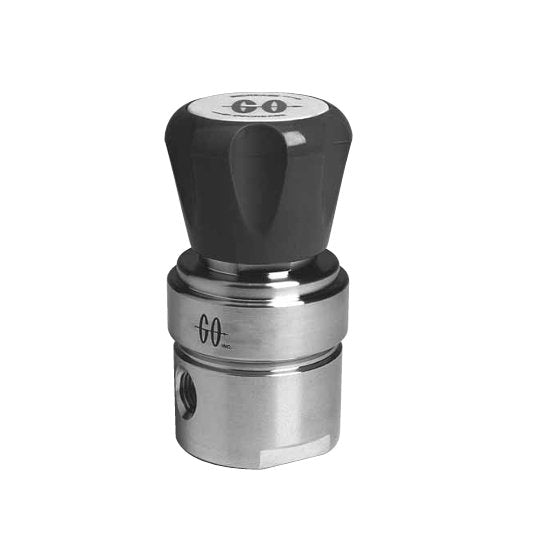

GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator

Name: GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator
Brand: Del Val Controls, Inc
SKU: GOP-5d8d1b
Price: 189.99 USD
Availability: OutOfStock

SKU:GOP-5d8d1b

Precise high-flow regulation for gas and liquid systems. Stainless steel construction with adjustable range 0-10 psig. Ideal for institutional buyers.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator is a versatile solution designed to handle high flows with precision and sensitivity, making it ideal for gas and liquid systems. Constructed with 316L Stainless Steel and featuring a Polyetrafluoroethylene (PTFE) diaphragm, it ensures reliable performance. With an adjustable outlet range of 0 to 10 psig and stainless steel cap, it offers bubble-tight shutoff and minimal droop even at large flow rates. This regulator meets the stringent demands of institutional buyers requiring sturdy construction and precise control, ensuring optimal performance in a variety of applications.

Product Specifications

Features And Specifications Features And Specifications

High flow capability in compact sizeMinimum droop with large flow increasesBubble-tight shutoffStainless steel cap and adjusting screwMaterials of construction: stainless steel, Brass, MONELÂ®, HASTELLOYÂ® C, Brass chrome platedOperating temperatures up to +400 Â°F (+204 Â°C)Ideal for line regulator applicationsPolytetrafluoroethylene (PTFE)/Fluorocarbon (FKM) diaphragm standard up to 50 psigInlet pressure 300 psigAdjustable outlet ranges 0-10, 0-25, 0-50, 0-100, and 0-250 psig

Options Options

Panel mount (requires 1 3/8" mounting hole)Extra portsPressure gaugesCaptured vent

Specifications Body Material

316L Stainless Steel, Stainless Steel Diaphragm

Specifications Cap Assembly

Standard, Stainless Steel

Specifications Diaphragm Backing Material

Metal Backing

Specifications Diaphragm Facing Material

Polytetrafluoroethylene (PTFE)

Specifications Diaphragm Type

Standard Diaphragm

Specifications Flow Coefficient Cv

0.2

Specifications Gauge Port Size

1/4 in

Specifications Gauge Port Types

Female National Pipe Tapered (FNPT) Gauge Port

Specifications Inlet Filter

20 Âµm

Specifications Outlet Range

0 to 10 psig

Specifications Port Configuration

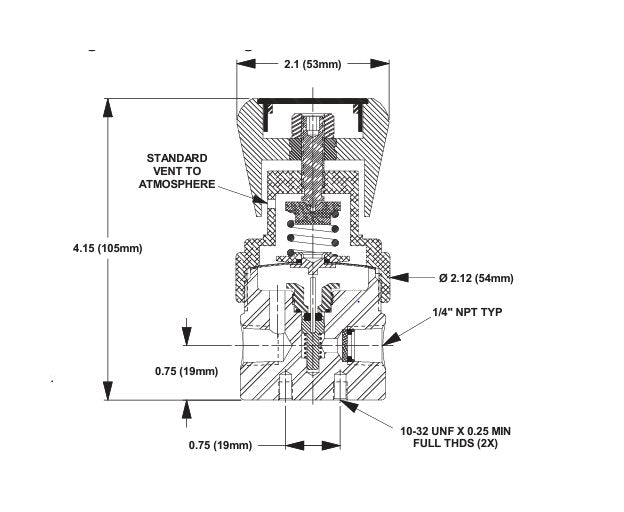

B - See Diagram for Port Configuration

Specifications Process Port Size

1/4 in

Specifications Process Port Types

Female National Pipe Tapered (FNPT)

Specifications Seat Material

Fluorocarbon (FKM) (Standard)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra | Standard

Specifications Weight

1.9 lb | 0.86 kg
