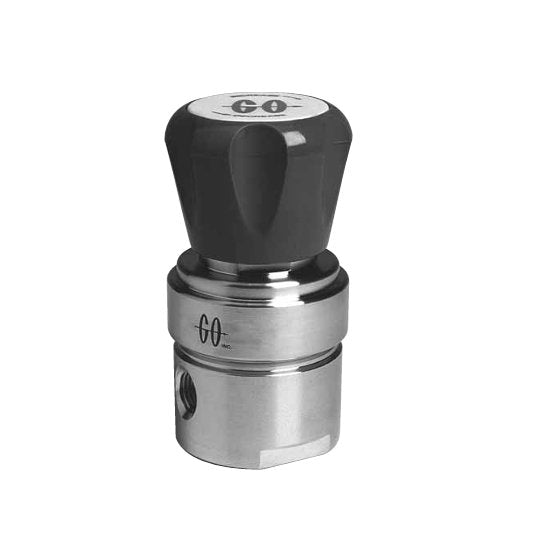

GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator

Name: GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator
Brand: Del Val Controls, Inc
SKU: GOP-3b154c
Price: 349.99 USD
Availability: OutOfStock

SKU:GOP-3b154c

GO Regulator PR-5 High Flow Regulator for precise high flow control, stainless steel construction, and adjustable 0-50 psig range.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The GO Regulator PR-5 High Flow Adjustable Pressure Reducing Regulator is a versatile solution designed for high flow applications with excellent sensitivity and regulation. Its stainless steel construction ensures compatibility with gas and liquid systems. With a flow coefficient of 0.2 and adjustable outlet ranges from 0 to 50 psig, this regulator delivers precise control under varying pressures. Featuring materials like Polytetrafluoroethylene (PTFE) and Fluorocarbon (FKM), it offers bubble-tight shutoff and operates at temperatures up to +400°F (+204°C). Ideal for institutional settings requiring robust line regulation.

Product Specifications

Features And Specifications Features And Specifications

High flow capability in compact sizeMinimum droop with large flow increasesBubble-tight shutoffStainless steel cap and adjusting screwMaterials of construction: stainless steel, Brass, MONELÂ®, HASTELLOYÂ® C, Brass chrome platedOperating temperatures up to +400 Â°F (+204 Â°C)Ideal for line regulator applicationsPolytetrafluoroethylene (PTFE)/Fluorocarbon (FKM) diaphragm standard up to 50 psigInlet pressure 300 psigAdjustable outlet ranges 0-10, 0-25, 0-50, 0-100, and 0-250 psig

Options Options

Panel mount (requires 1 3/8" mounting hole)Extra portsPressure gaugesCaptured vent

Specifications Body Material

316L Stainless Steel, Stainless Steel Diaphragm

Specifications Cap Assembly

Standard, Stainless Steel

Specifications Diaphragm Backing Material

Metal Backing

Specifications Diaphragm Facing Material

Polytetrafluoroethylene (PTFE)

Specifications Diaphragm Type

Standard Diaphragm

Specifications Flow Coefficient Cv

0.2

Specifications Gauge Port Size

1/4 in

Specifications Gauge Port Types

Female National Pipe Tapered (FNPT) Gauge Port

Specifications Inlet Filter

20 Âµm

Specifications Outlet Range

0 to 50 psig

Specifications Port Configuration

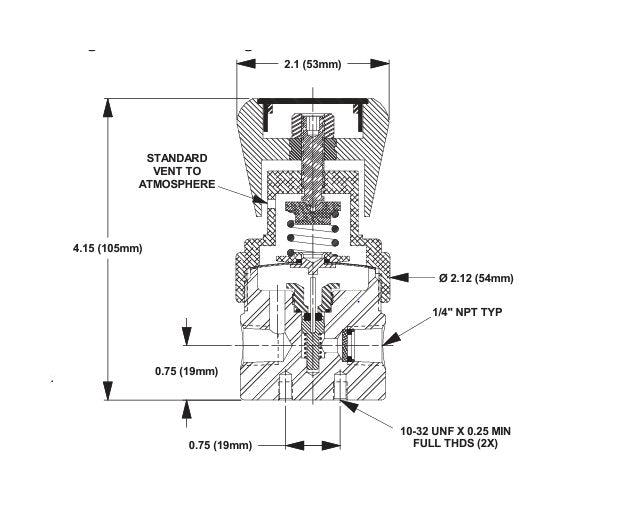

B - See Diagram for Port Configuration

Specifications Process Port Size

1/4 in

Specifications Process Port Types

Female National Pipe Tapered (FNPT)

Specifications Seat Material

Fluorocarbon (FKM) (Standard)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra | Standard

Specifications Weight

1.9 lb | 0.86 kg
