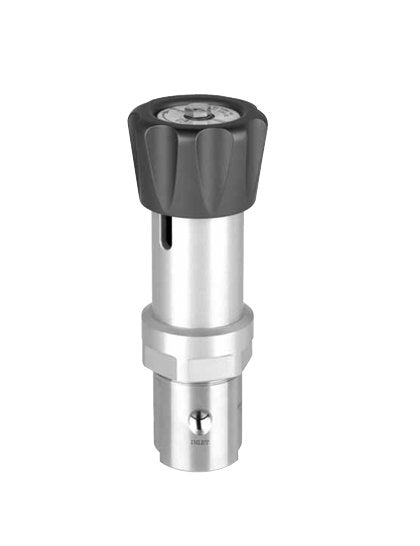

GO Regulator PR-50 High Pressure Regulator
GO Regulator PR-50 High Pressure Regulator
SKU:GOP-521afc
GO Regulator PR-50 High Pressure Regulator: Precision-engineered for pressures up to 2000 psig with self-relieving diaphragm. Ideal for gas or liquid services in various industries.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
GO Regulator PR-50 High Pressure Regulator
$299.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-50 High Pressure Regulator
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-50 High Pressure Regulator is a precision-engineered solution designed to meet demanding outlet pressures of up to 2000 psig with superior corrosion protection. Constructed with 316L Stainless Steel for maximum corrosion resistance and safety, this regulator features a self-relieving diaphragm type for operational ease. With a flow coefficient of 0.06 and outlet pressure range from 0 to 1,000 psig, this regulator is ideal for gas or liquid services in various applications like airline charging carts, pilot plants, and R&D systems. The PR-50 comes with options for a Certificate of Conformity and Pressure Test Certificate, ensuring compliance and reliability. Contact the factory for any additional customization requirements.
Product Specifications
Applications Applications
Airline charging carts | Cylinder gas regulation | Offshore drillings | Pilot plants | R and D systems | Sampling systems
Features And Specifications Features And Specifications
Gas or liquid serviceOutlet pressure ranges 0-500, 0-1000, and 0-2000 psig316L stainless steel or Brass (alloy 360) constructionBubble-tight shutoff1/4" FNPT standardDiaphragm material standard stainless steel, nylon or Polytetrafluoroethylene (PTFE)Flow coefficients (Cv) of 0.025, 0.06, and 0.20
Note Note
Contact the factory for any additional requirements.
Options Options
Certificate of Conformity | Pressure Test Certificate
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, Aluminum
Specifications Diaphragm Facingbacking Material
Facing - Stainless SteelBacking - Polytetrafluoroethylene (PTFE)O-Rings - Polytetrafluoroethylene (PTFE)Actuator - Stainless Steel
Specifications Diaphragm Type
Self-Relieving
Specifications Flow Coefficient Cv
0.06
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Guage Port
Specifications Inlet Filter
20 µm
Specifications Inlet Pressure
6000 psig
Specifications Outlet Range
0 to 1,000 psig
Specifications Port Configuration

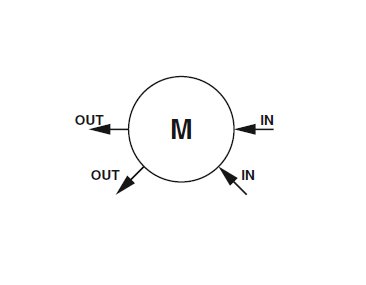

M - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
4.4 lb | 2.0 kg
