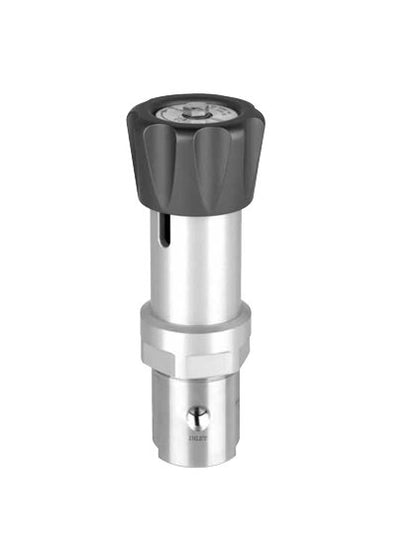

GO Regulator PR-50 High Pressure Regulator
GO Regulator PR-50 High Pressure Regulator
SKU:GOP-a3694a
Experience precision and durability with GO Regulator PR-50 High Pressure Regulator. Outlet pressures up to 2000 psig, stainless steel construction, and safeguarded for optimal performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
GO Regulator PR-50 High Pressure Regulator
$299.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-50 High Pressure Regulator
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-50 0.2 Flow Coefficient (Cv) Diaphragm Type High Pressure Regulator is engineered to deliver precision outlet pressures of up to 2000 psig with exceptional corrosion protection. Crafted from 316L Stainless Steel for maximum durability, this regulator ensures reliable operation and safety. The optional self-relieving feature enhances operational ease by venting trapped downstream pressure safely. With an integral inlet filter safeguarding against foreign contamination, this regulator prolongs its lifespan, making it ideal for diverse applications like airline charging carts, R&D systems, and more.
Product Specifications
Applications Applications
Airline charging carts | Cylinder gas regulation | Offshore drillings | Pilot plants | R and D systems | Sampling systems
Features And Specifications Features And Specifications
Gas or liquid serviceOutlet pressure ranges 0-500, 0-1000, and 0-2000 psig316L stainless steel or Brass (alloy 360) constructionBubble-tight shutoff1/4" FNPT standardDiaphragm material standard stainless steel, nylon or Polytetrafluoroethylene (PTFE)Flow coefficients (Cv) of 0.025, 0.06, and 0.20
Note Note
Contact the factory for any additional requirements.
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, Aluminum
Specifications Diaphragm Facingbacking Material
Facing - Stainless SteelBacking - NylonO-Rings - Fluorocarbon (FKM)Actuator - Stainless Steel
Specifications Diaphragm Type
Non-Self-Relieving
Specifications Flow Coefficient Cv
0.2
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Guage Port
Specifications Inlet Filter
20 µm
Specifications Inlet Pressure
6000 psig
Specifications Outlet Range
0 to 2,000 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
4.4 lb | 2.0 kg
