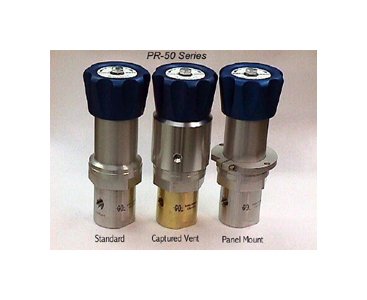

The GO Regulator PR-50 Series Pressure Regulator is specially crafted to deliver exceptional performance for outlet pressures of up to 3000 psig. Its robust stainless steel body ensures maximum corrosion resistance and long-term reliability. The optional self-relieving feature enhances operational safety by venting trapped downstream pressure. With an integral inlet filter and options for various materials, this regulator guarantees precise control for gas or liquid services under demanding conditions. Experience superior quality and durability with this regulator designed to meet the stringent requirements of industrial and government procurement standards.
Product Specifications
Applications 0
R & D systemsCylinder gas regulationSampling systemsAirline charging cartsPilot plantsOff shore drillings
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, aluminum
Specifications Diaphragm Facing Material
Stainless Steel
Specifications Diaphragm Type
Non-self-relieving
Specifications Flow Coefficient Cv
0.20
Specifications Max Operating Pressure
3600 psig
Specifications Operating Temperature
-40 to 66 ºC | -40 to 150 ºF
Specifications Outlet Range
0 to 500 psig
Specifications Port Configuration
Standard
Specifications Process Port Type
1/4" FNPT
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra, Standard
Specifications Weight
4.4 lbs
