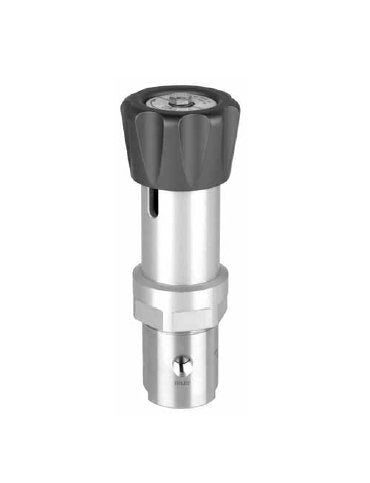

GO Regulator PR-57 High Pressure Single Stage Regulator

Name: GO Regulator PR-57 High Pressure Single Stage Regulator
Brand: Del Val Controls, Inc
SKU: GOP-070236
Price: 299.99 USD
Availability: OutOfStock

SKU:GOP-070236

GO Regulator PR-57 Series: Precise pressure regulation up to 6000 psig, stainless steel construction, self-relieving option, suitable for gas or liquid service.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The GO Regulator PR-57 Series offers precise pressure regulation up to 6000 psig with a low torque adjustment design. Constructed from 316L stainless steel for safety and corrosion resistance, it features a self-relieving option for added operational ease. With a stainless steel piston sensor and fluorocarbon seals, this regulator ensures bubble-tight shutoff and is ideal for gas or liquid service applications.

Product Specifications

Features And Specifications Features And Specifications

Gas or liquid service316L stainless steel constructionBetter than 25 Ra finish in diaphragm cavityStainless steel spring loaded piston sensorBubble-tight shutoffFluorocarbon (FKM) seals (other elastomers optional)Inlet pressure maximum 10,000Outlet pressure ranges are 0-250, 0-500, 0-750, 0-1000, 0-2000, 0-4000, 0-6000, 0-7500 and 0-10,000 psig1/4" FNPT standard

Note Note

Contact the factory for any additional requirements.Polyetheretherketoneâ¢ (PEEKâ¢) is a trademark of Victrex PLC.

Options Options

Gauges and CGA fittings for cylinder gas applicationSelf-relieving and captured vent3/8" FNPT

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

Captured Vent, Panel Mount, Stainless Steel

Specifications Filter

20 Âµm

Specifications Flow Coefficient Cv

0.2

Specifications Gauge Port Size

1/4 in

Specifications Gauge Port Types

Female National Pipe Tapered (FNPT)

Specifications Operating Temperature

-40 to +150 ÂºF | -40 to +66 ÂºC

Specifications Outlet Range

0 to 6000 psig

Specifications Piston Material

Stainless Steel/Polytetrafluoroethylene (PTFE) Cavity O-Ring

Specifications Piston Type

Self-Relieving

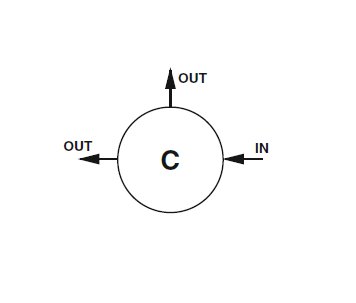

Specifications Port Configuration

C - See Diagram for Port Configuration

Specifications Process Port Size

1/4 in

Specifications Process Port Types

Female National Pipe Tapered (FNPT)

Specifications Seat Material

Polyimide

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra

Specifications Weight

4.4 lb | 2.0 kg

GO Regulator PR-57 High Pressure Single Stage Regulator
