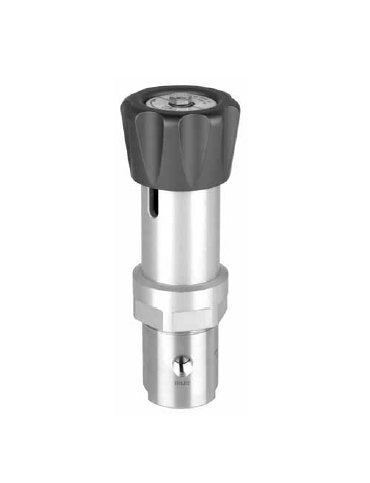

GO Regulator PR-57 High Pressure Single Stage Regulator

Name: GO Regulator PR-57 High Pressure Single Stage Regulator
Brand: Del Val Controls, Inc
SKU: GOP-5e9b88
Price: 289.99 USD
Availability: OutOfStock

SKU:GOP-5e9b88

GO Regulator PR-57: High Pressure Corrosion-Resistant Regulator for precise pressure control in demanding applications.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The GO Regulator PR-57 Series regulator is designed to safely reduce inlet pressures of up to 10,000 psig. Constructed from 316L stainless steel, this single-stage regulator offers exceptional safety and corrosion resistance. Featuring a self-relieving piston design, it ensures precise outlet pressure settings with low torque requirements. With options for trapped downstream pressure relief and a durable construction, this regulator ensures reliable operation in demanding environments.

Product Specifications

Features And Specifications Features And Specifications

Gas or liquid service316L stainless steel constructionBetter than 25 Ra finish in diaphragm cavityStainless steel spring loaded piston sensorBubble-tight shutoffFluorocarbon (FKM) seals (other elastomers optional)Inlet pressure maximum 10,000Outlet pressure ranges are 0-250, 0-500, 0-750, 0-1000, 0-2000, 0-4000, 0-6000, 0-7500 and 0-10,000 psig1/4" FNPT standard

Note Note

Contact the factory for any additional requirements.Polyetheretherketoneâ¢ (PEEKâ¢) is a trademark of Victrex PLC.

Options Options

Gauges and CGA fittings for cylinder gas applicationSelf-relieving and captured vent3/8" FNPT

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

Standard, Aluminum

Specifications Filter

20 Âµm

Specifications Flow Coefficient Cv

0.05

Specifications Gauge Port Size

1/4 in

Specifications Gauge Port Types

Female National Pipe Tapered (FNPT)

Specifications Operating Temperature

-40 to +150 ÂºF | -40 to +66 ÂºC

Specifications Outlet Range

0 to 4000 psig

Specifications Piston Material

Stainless Steel/Polytetrafluoroethylene (PTFE) Cavity O-Ring

Specifications Piston Type

Self-Relieving

Specifications Port Configuration

Standard

Specifications Process Port Size

1/4 in

Specifications Process Port Types

Female National Pipe Tapered (FNPT)

Specifications Seat Material

Polyimide

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra

Specifications Weight

4.4 lb | 2.0 kg
