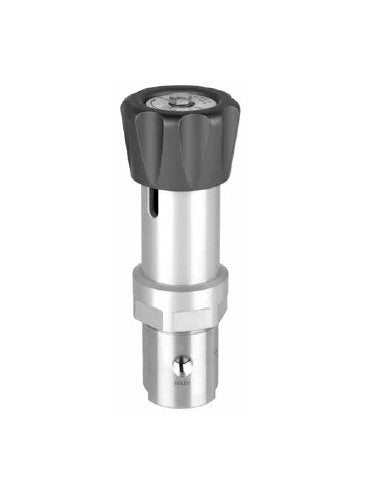

GO Regulator PR-57 High Pressure Single Stage Regulator

Name: GO Regulator PR-57 High Pressure Single Stage Regulator
Brand: Del Val Controls, Inc
SKU: GOP-16c9bc
Price: 249.99 USD
Availability: OutOfStock

SKU:GOP-16c9bc

GO Regulator PR-57 High Pressure Single Stage Regulator, 316L stainless steel construction, non-self-relieving piston, optional self-relieving feature, ideal for gas or liquid services.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The GO Regulator PR-57 Series regulator is engineered to safely reduce inlet pressures up to 10,000 psig. Constructed with 316L stainless steel for ultimate safety and corrosion resistance, this precision regulator features a piston sensing design for low adjusting torque. With a non-self-relieving piston and optional self-relieving feature, it ensures operational ease and safety. Ideal for gas or liquid services, this regulator offers surface finishes better than 25 Ra and stainless steel spring-loaded piston sensors for bubble-tight shutoff. Explore various outlet pressure ranges from 0 to 10,000 psig, making it versatile for different applications.

Product Specifications

Features And Specifications Features And Specifications

Gas or liquid service316L stainless steel constructionBetter than 25 Ra finish in diaphragm cavityStainless steel spring loaded piston sensorBubble-tight shutoffFluorocarbon (FKM) seals (other elastomers optional)Inlet pressure maximum 10,000Outlet pressure ranges are 0-250, 0-500, 0-750, 0-1000, 0-2000, 0-4000, 0-6000, 0-7500 and 0-10,000 psig1/4" FNPT standard

Note Note

Contact the factory for any additional requirements.Polyetheretherketoneâ¢ (PEEKâ¢) is a trademark of Victrex PLC.

Options Options

Gauges and CGA fittings for cylinder gas applicationSelf-relieving and captured vent3/8" FNPT

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

Standard, Aluminum

Specifications Filter

20 Âµm

Specifications Flow Coefficient Cv

0.2

Specifications Gauge Port Size

1/4 in

Specifications Gauge Port Types

Female National Pipe Tapered (FNPT)

Specifications Operating Temperature

-40 to +150 ÂºF | -40 to +66 ÂºC

Specifications Outlet Range

0 to 6000 psig

Specifications Piston Material

Stainless Steel/Polytetrafluoroethylene (PTFE) Cavity O-Ring

Specifications Piston Type

Non-Self-Relieving

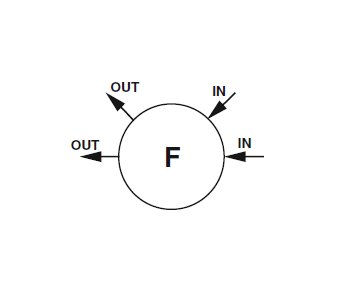

Specifications Port Configuration

F - See Diagram for Port Configuration

Specifications Process Port Size

1/4 in

Specifications Process Port Types

Female National Pipe Tapered (FNPT)

Specifications Seat Material

Polyimide

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra

Specifications Weight

4.4 lb | 2.0 kg

GO Regulator PR-57 High Pressure Single Stage Regulator
