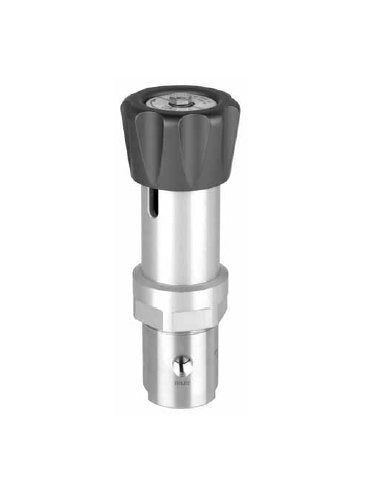

GO Regulator PR-57 High Pressure Single Stage Regulator

Name: GO Regulator PR-57 High Pressure Single Stage Regulator
Brand: Del Val Controls, Inc
SKU: GOP-019c31
Price: 389.99 USD
Availability: OutOfStock

SKU:GOP-019c31

Precise and durable single stage regulator for safe pressure reduction up to 10,000 psig, ideal for gas or liquid services.

$389.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The GO Regulator PR-57 High Pressure Single Stage Regulator is designed to safely reduce inlet pressures up to 10,000 psig, featuring a piston sensing design for precise outlet pressure adjustment. Constructed from 316L stainless steel for superior safety and corrosion resistance, this regulator offers optional self-relieving capability to vent trapped downstream pressure. With a flow coefficient of 0.05 and an outlet range of 0 to 6000 psig, it ensures reliable performance in demanding applications for gas or liquid services.

Product Specifications

Features And Specifications Features And Specifications

Gas or liquid service316L stainless steel constructionBetter than 25 Ra finish in diaphragm cavityStainless steel spring loaded piston sensorBubble-tight shutoffFluorocarbon (FKM) seals (other elastomers optional)Inlet pressure maximum 10,000Outlet pressure ranges are 0-250, 0-500, 0-750, 0-1000, 0-2000, 0-4000, 0-6000, 0-7500 and 0-10,000 psig1/4" FNPT standard

Note Note

Contact the factory for any additional requirements.Polyetheretherketoneâ¢ (PEEKâ¢) is a trademark of Victrex PLC.

Options Options

Gauges and CGA fittings for cylinder gas applicationSelf-relieving and captured vent3/8" FNPT

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

Panel Mount, Aluminum

Specifications Filter

20 Âµm

Specifications Flow Coefficient Cv

0.05

Specifications Gauge Port Size

1/4 in

Specifications Gauge Port Types

Female National Pipe Tapered (FNPT)

Specifications Operating Temperature

-40 to +150 ÂºF | -40 to +66 ÂºC

Specifications Outlet Range

0 to 6000 psig

Specifications Piston Material

Stainless Steel/Fluorocarbon (FKM) Cavity O-Ring

Specifications Piston Type

Non-Self-Relieving

Specifications Port Configuration

Standard

Specifications Process Port Size

1/4 in

Specifications Process Port Types

Female National Pipe Tapered (FNPT)

Specifications Seat Material

Polyimide

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra

Specifications Weight

4.4 lb | 2.0 kg

GO Regulator PR-57 High Pressure Single Stage Regulator
