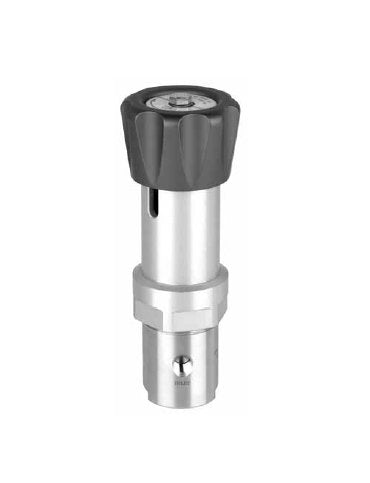

Experience unparalleled precision and safety with the GO Regulator PR-57 High Pressure Single Stage Regulator. Designed to reduce inlet pressures up to 10,000 psig, this regulator features a corrosion-resistant 316L stainless steel construction for ultimate durability. The piston sensing design allows for low adjusting torque requirements, while the self-relieving feature ensures trapped downstream pressure is safely vented for optimal operational ease. With an outlet range of 0 to 4000 psig and a flow coefficient of 0.05, this regulator is ideal for gas or liquid services, meeting the highest industry standards.

Product Specifications

Features And Specifications Features And Specifications

Gas or liquid service316L stainless steel constructionBetter than 25 Ra finish in diaphragm cavityStainless steel spring loaded piston sensorBubble-tight shutoffFluorocarbon (FKM) seals (other elastomers optional)Inlet pressure maximum 10,000Outlet pressure ranges are 0-250, 0-500, 0-750, 0-1000, 0-2000, 0-4000, 0-6000, 0-7500 and 0-10,000 psig1/4" FNPT standard

Note Note

Contact the factory for any additional requirements.Polyetheretherketoneâ¢ (PEEKâ¢) is a trademark of Victrex PLC.

Options Options

Gauges and CGA fittings for cylinder gas applicationSelf-relieving and captured vent3/8" FNPT

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

Panel Mount, Aluminum

Specifications Filter

20 Âµm

Specifications Flow Coefficient Cv

0.05

Specifications Gauge Port Size

1/4 in

Specifications Gauge Port Types

Female National Pipe Tapered (FNPT)

Specifications Operating Temperature

-40 to +150 ÂºF | -40 to +66 ÂºC

Specifications Outlet Range

0 to 4000 psig

Specifications Piston Material

Stainless Steel/Polytetrafluoroethylene (PTFE) Cavity O-Ring

Specifications Piston Type

Self-Relieving

Specifications Port Configuration

Standard

Specifications Process Port Size

1/4 in

Specifications Process Port Types

Female National Pipe Tapered (FNPT)

Specifications Seat Material

Polyetheretherketone (PEEKâ¢)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra

Specifications Weight

4.4 lb | 2.0 kg
