GO Regulator PR-57 High Pressure Single Stage Regulator

Name: GO Regulator PR-57 High Pressure Single Stage Regulator
Brand: Del Val Controls, Inc
SKU: GOP-c22eb6
Price: 349.99 USD
Availability: OutOfStock

SKU:GOP-c22eb6

GO Regulator PR-57: High precision, corrosion-resistant single stage regulator for safe pressure reduction up to 4000 psig. Ideal for gas or liquid services.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The GO Regulator PR-57 Series is designed to safely reduce inlet pressures of up to 10,000 psig with precision and ease. Constructed from 316L stainless steel for superior corrosion resistance and safety, this regulator features a self-relieving piston design for added operational convenience. With an outlet range of 0 to 4000 psig and a flow coefficient (Cv) of 0.05, it ensures accurate pressure control. Ideal for gas or liquid services, it meets stringent industry standards and offers reliable performance in demanding environments.

Product Specifications

Features And Specifications Features And Specifications

Gas or liquid service316L stainless steel constructionBetter than 25 Ra finish in diaphragm cavityStainless steel spring loaded piston sensorBubble-tight shutoffFluorocarbon (FKM) seals (other elastomers optional)Inlet pressure maximum 10,000Outlet pressure ranges are 0-250, 0-500, 0-750, 0-1000, 0-2000, 0-4000, 0-6000, 0-7500 and 0-10,000 psig1/4" FNPT standard

Note Note

Contact the factory for any additional requirements.Polyetheretherketoneâ¢ (PEEKâ¢) is a trademark of Victrex PLC.

Options Options

Gauges and CGA fittings for cylinder gas applicationSelf-relieving and captured vent3/8" FNPT

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

Standard, Aluminum

Specifications Filter

20 Âµm

Specifications Flow Coefficient Cv

0.05

Specifications Gauge Port Size

1/4 in

Specifications Gauge Port Types

Female National Pipe Tapered (FNPT)

Specifications Operating Temperature

-40 to +150 ÂºF | -40 to +66 ÂºC

Specifications Outlet Range

0 to 4000 psig

Specifications Piston Material

Stainless Steel/Polytetrafluoroethylene (PTFE) Cavity O-Ring

Specifications Piston Type

Self-Relieving

Specifications Port Configuration

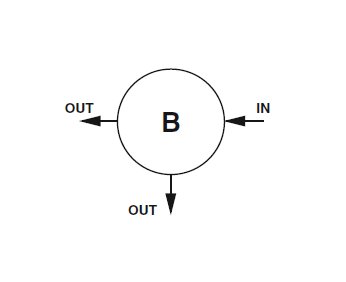

B - See Diagram for Port Configuration

Specifications Process Port Size

1/4 in

Specifications Process Port Types

Female National Pipe Tapered (FNPT)

Specifications Seat Material

Polyimide

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra

Specifications Weight

4.4 lb | 2.0 kg

GO Regulator PR-57 High Pressure Single Stage Regulator
