GO Regulator PR-59 High Pressure Regulator

Name: GO Regulator PR-59 High Pressure Regulator
Brand: Del Val Controls, Inc
SKU: GOP-609776
Price: 299.99 USD
Availability: OutOfStock

SKU:GOP-609776

GO Regulator PR-59 High Pressure Regulator - Control high flow with precision up to 4000 psig. Durable stainless steel construction for versatile gas and liquid applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

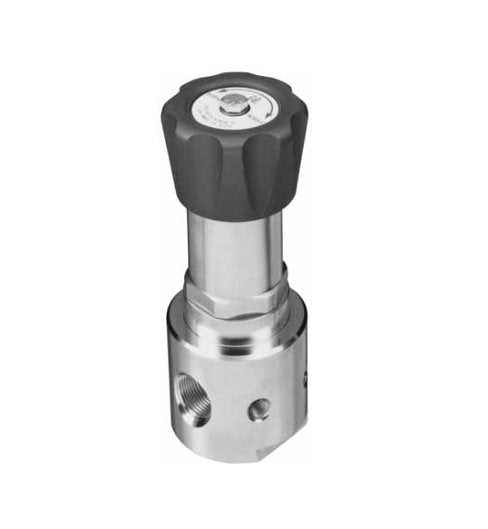

The GO Regulator PR-59 High Pressure Regulator is a reliable solution for controlling high flow in low and high-pressure systems up to 4000 psig. With a Cv flow coefficient of 1.2, this regulator offers precise control and can be customized with optional self-relieving features. Constructed from 316L stainless steel with Polychlorotrifluoroethylene (PCTFE) seat material, it ensures durability and bubble-tight shutoff. The balanced poppet valve design and Fluorocarbon (FKM) seals further enhance its performance, making it suitable for various gas and liquid applications.

Product Specifications

Features And Specifications Features And Specifications

316L stainless steel, Brass and MONELÂ® body constructionInlet pressure capability up to 4000 psigOutlet control ranges from 250 psig up to 4000 psigOptional self-relieving featureInlet and outlet ports of 1/2" or 3/4" FNPT with 1/4" FNPT gauge ports optional1/2" FNPT standardBalanced poppet valve design for constant pressure controlFluorocarbon (FKM) seals (other elastomers optional)Polychlorotrifluoroethylene (PCTFE) seat

Note Note

Contact the factory for any additional requirements.

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

Standard, Stainless Steel

Specifications Flow Coefficient Cv

1.2

Specifications Gauge Port Types

1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports

Specifications Operating Temperature

-40 to +175 ÂºF | -40 to +80 ÂºC

Specifications Outlet Range

0 to 2000 psig

Specifications Piston Material

Stainless Steel

Specifications Piston Type

Non-Self-Relieving

Specifications Port Configuration

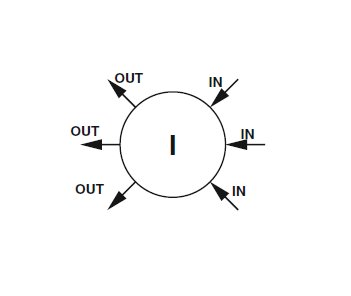

I - See Diagram for Port Configuration

Specifications Process Port Types

1/2 in. Female National Pipe Tapered (FNPT)

Specifications Seat Material

Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-FÂ® 81)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra

Specifications Weight

4.6 lb | 2.1 kg
