GO Regulator PR-59 High Pressure Regulator 0-1000 psig
GO Regulator PR-59 High Pressure Regulator 0-1000 psig
SKU:GOP-465d57
GO Regulator PR-59: High flow, precise pressure control from 0 to 1000 psig. Ideal for gas and liquid systems. Durable stainless steel construction.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
GO Regulator PR-59 High Pressure Regulator 0-1000 psig
$289.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-59 High Pressure Regulator 0-1000 psig
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-59 High Pressure/High Flow Single Stage Regulator is designed for precise control in low to high pressure applications up to 4000 psig inlet. Featuring a Cv flow coefficient of 1.2, this regulator ensures high flow accuracy. The stainless steel construction, PCTFE seat, and fluorocarbon seals guarantee durability and compatibility with a wide range of gases and liquids. With an outlet range of 0 to 1000 psig, balanced poppet valve design, and optional self-relieving feature, the PR-59 offers reliable performance in diverse industrial settings. Contact the factory for customization options and additional requirements.
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, Brass and MONEL® body constructionInlet pressure capability up to 4000 psigOutlet control ranges from 250 psig up to 4000 psigOptional self-relieving featureInlet and outlet ports of 1/2" or 3/4" FNPT with 1/4" FNPT gauge ports optional1/2" FNPT standardBalanced poppet valve design for constant pressure controlFluorocarbon (FKM) seals (other elastomers optional)Polychlorotrifluoroethylene (PCTFE) seat
Note Note
Contact the factory for any additional requirements.
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Flow Coefficient Cv
1.2
Specifications Gauge Port Types
1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports
Specifications Operating Temperature
-40 to +175 ºF | -40 to +80 ºC
Specifications Outlet Range
0 to 1000 psig
Specifications Piston Material
Stainless Steel
Specifications Piston Type
Non-Self-Relieving
Specifications Port Configuration

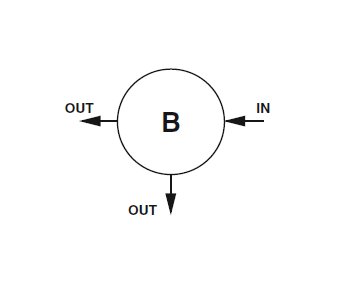

B - See Diagram for Port Configuration
Specifications Process Port Types
1/2 in. Female National Pipe Tapered (FNPT)
Specifications Seat Material
Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-F® 81)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
4.6 lb | 2.1 kg
