GO Regulator PR-59 High Pressure Regulator, 0-2000 psig Outlet Range
GO Regulator PR-59 High Pressure Regulator, 0-2000 psig Outlet Range
SKU:GOP-bcc4ec
The GO Regulator PR-59: High-pressure, high-flow regulator for precise control in gas and liquid systems.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
GO Regulator PR-59 High Pressure Regulator, 0-2000 psig Outlet Range
$299.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-59 High Pressure Regulator, 0-2000 psig Outlet Range
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

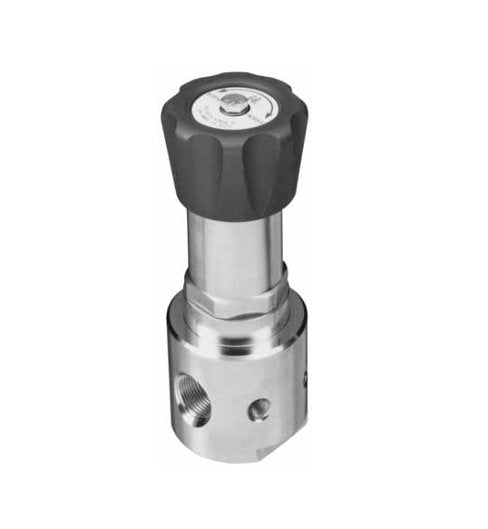

The GO Regulator PR-59 is a high-pressure, high-flow single-stage regulator designed for pressures up to 4000 psig inlet. Featuring 316L stainless steel construction, this regulator offers precise control with a Cv flow coefficient of 1.2. It is ideal for gas streams and compatible with various liquid systems. The piston sensor ensures sensitivity even at low outlet pressures, while the PCTFE seat provides bubbletight shutoff. With optional self-relieving capability and temperature range of -40 to +175°F, the PR-59 meets the stringent requirements of institutional buyers.
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, Brass and MONEL® body constructionInlet pressure capability up to 4000 psigOutlet control ranges from 250 psig up to 4000 psigOptional self-relieving featureInlet and outlet ports of 1/2" or 3/4" FNPT with 1/4" FNPT gauge ports optional1/2" FNPT standardBalanced poppet valve design for constant pressure controlFluorocarbon (FKM) seals (other elastomers optional)Polychlorotrifluoroethylene (PCTFE) seat
Note Note
Contact the factory for any additional requirements.
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Flow Coefficient Cv
1.2
Specifications Gauge Port Types
1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports
Specifications Operating Temperature
-40 to +175 ºF | -40 to +80 ºC
Specifications Outlet Range
0 to 2000 psig
Specifications Piston Material
Stainless Steel
Specifications Piston Type
Non-Self-Relieving
Specifications Port Configuration

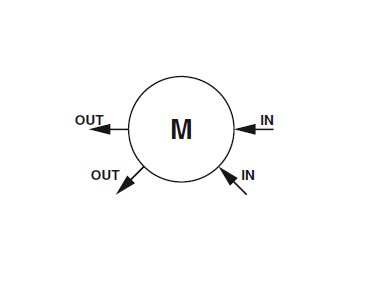

M - See Diagram for Port Configuration
Specifications Process Port Types
1/2 in. Female National Pipe Tapered (FNPT)
Specifications Seat Material
Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-F® 81)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
4.6 lb | 2.1 kg
