GO Regulator PR-59 High Pressure Regulator 0-500 psig
GO Regulator PR-59 High Pressure Regulator 0-500 psig
SKU:GOP-6313ed
GO Regulator PR-59 High Pressure Regulator for precise 0-500 psig control with durable stainless steel construction. Contact factory for customization.
Regular price
$379.99
Regular price
Sale price
$379.99
Unit price
per
Initiate Order
GO Regulator PR-59 High Pressure Regulator 0-500 psig
$379.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-59 High Pressure Regulator 0-500 psig
$379.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

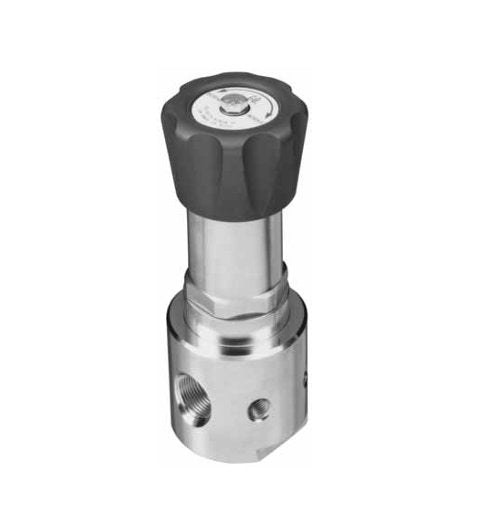

The GO Regulator PR-59 High Pressure/High Flow Single Stage Regulator is designed to handle pressures up to 4000 psig with precision control. Its Cv flow coefficient of 1.2 ensures efficient high flow regulation. Constructed with 316L stainless steel and featuring a Polychlorotrifluoroethylene (PCTFE) seat, this regulator provides reliable performance for gas and compatible liquid systems. With an outlet range of 0 to 500 psig and a balanced poppet valve design, it offers constant pressure control and bubbletight shutoff. Contact the factory for custom requirements.
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, Brass and MONEL® body constructionInlet pressure capability up to 4000 psigOutlet control ranges from 250 psig up to 4000 psigOptional self-relieving featureInlet and outlet ports of 1/2" or 3/4" FNPT with 1/4" FNPT gauge ports optional1/2" FNPT standardBalanced poppet valve design for constant pressure controlFluorocarbon (FKM) seals (other elastomers optional)Polychlorotrifluoroethylene (PCTFE) seat
Note Note
Contact the factory for any additional requirements.
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Flow Coefficient Cv
1.2
Specifications Gauge Port Types
1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports
Specifications Operating Temperature
-40 to +175 ºF | -40 to +80 ºC
Specifications Outlet Range
0 to 500 psig
Specifications Piston Material
Stainless Steel
Specifications Piston Type
Non-Self-Relieving
Specifications Port Configuration

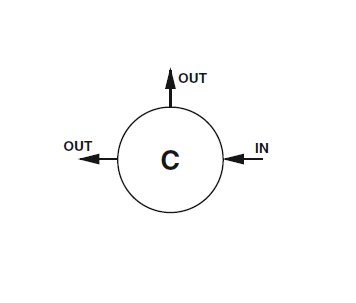

C - See Diagram for Port Configuration
Specifications Process Port Types
1/2 in. Female National Pipe Tapered (FNPT)
Specifications Seat Material
Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-F® 81)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
4.6 lb | 2.1 kg
