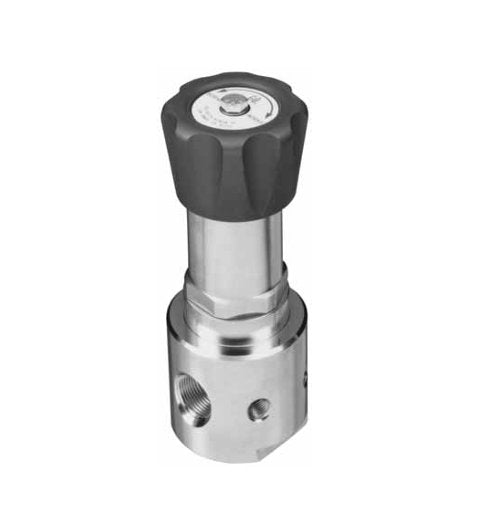

GO Regulator PR-59 High Pressure Regulator

Name: GO Regulator PR-59 High Pressure Regulator
Brand: Del Val Controls, Inc
SKU: GOP-5f89a4
Price: 289.99 USD
Availability: OutOfStock

SKU:GOP-5f89a4

GO Regulator PR-59: High pressure regulator up to 4000 psig, precise flow control, reliable shutoff, ideal for gas and liquid systems.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The GO Regulator PR-59 High Pressure Regulator is specially designed for pressures up to 4000 psig, featuring a Cv flow coefficient of 1.2 for precise high flow control. With a durable 316L stainless steel body, this single stage regulator offers exceptional sensitivity at low outlet pressures. The self-relieving piston sensor and Polychlorotrifluoroethylene (PCTFE) seat provide reliable shutoff. Ideal for gas streams and compatible liquids, this regulator ensures consistent pressure management across various systems.

Product Specifications

Features And Specifications Features And Specifications

316L stainless steel, Brass and MONELÂ® body constructionInlet pressure capability up to 4000 psigOutlet control ranges from 250 psig up to 4000 psigOptional self-relieving featureInlet and outlet ports of 1/2" or 3/4" FNPT with 1/4" FNPT gauge ports optional1/2" FNPT standardBalanced poppet valve design for constant pressure controlFluorocarbon (FKM) seals (other elastomers optional)Polychlorotrifluoroethylene (PCTFE) seat

Note Note

Contact the factory for any additional requirements.

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

Standard, Stainless Steel

Specifications Flow Coefficient Cv

1.2

Specifications Gauge Port Types

1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports

Specifications Operating Temperature

-40 to +175 ÂºF | -40 to +80 ÂºC

Specifications Outlet Range

0 to 4000 psig

Specifications Piston Material

Stainless Steel

Specifications Piston Type

Self-Relieving

Specifications Port Configuration

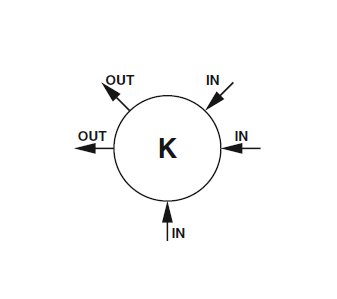

K - See Diagram for Port Configuration

Specifications Process Port Types

1/2 in. Female National Pipe Tapered (FNPT)

Specifications Seat Material

Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-FÂ® 81)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra

Specifications Weight

4.6 lb | 2.1 kg
