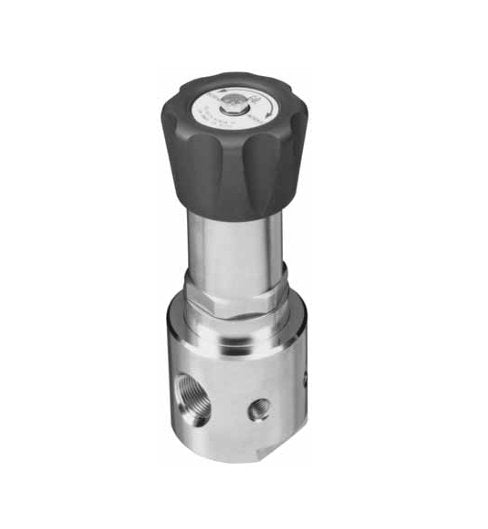

GO Regulator PR-59 High Pressure Single Stage Regulator
GO Regulator PR-59 High Pressure Single Stage Regulator
SKU:GOP-534640
GO Regulator PR-59 High Pressure Single Stage Regulator: Precise control up to 4000 psig, stainless steel construction, ideal for high-flow applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
GO Regulator PR-59 High Pressure Single Stage Regulator
$289.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-59 High Pressure Single Stage Regulator
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-59 High Pressure Single Stage Regulator is a versatile solution designed for pressures up to 4000 psig, offering precise control with a Cv flow coefficient of 1.2. Constructed with 316L stainless steel and featuring a non-self-relieving piston, this regulator ensures reliable performance in gas and liquid systems. With an outlet range of 0 to 750 psig, balanced poppet valve design, and PCTFE seat material, the PR-59 delivers consistent pressure regulation even at low pressures. Suitable for various applications, this regulator meets the demands of high-flow environments, providing exceptional sensitivity and bubbletight shutoff for optimal operational efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, Brass and MONEL® body constructionInlet pressure capability up to 4000 psigOutlet control ranges from 250 psig up to 4000 psigOptional self-relieving featureInlet and outlet ports of 1/2" or 3/4" FNPT with 1/4" FNPT gauge ports optional1/2" FNPT standardBalanced poppet valve design for constant pressure controlFluorocarbon (FKM) seals (other elastomers optional)Polychlorotrifluoroethylene (PCTFE) seat
Note Note
Contact the factory for any additional requirements.
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Flow Coefficient Cv
1.2
Specifications Gauge Port Types
1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports
Specifications Operating Temperature
-40 to +175 ºF | -40 to +80 ºC
Specifications Outlet Range
0 to 750 psig
Specifications Piston Material
Stainless Steel
Specifications Piston Type
Non-Self-Relieving
Specifications Port Configuration

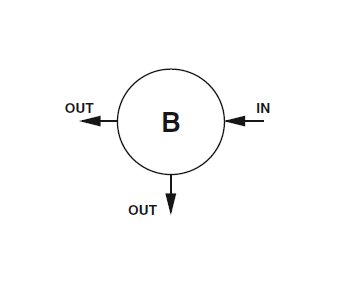

B - See Diagram for Port Configuration
Specifications Process Port Types
1/2 in. Female National Pipe Tapered (FNPT)
Specifications Seat Material
Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-F® 81)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
4.6 lb | 2.1 kg
