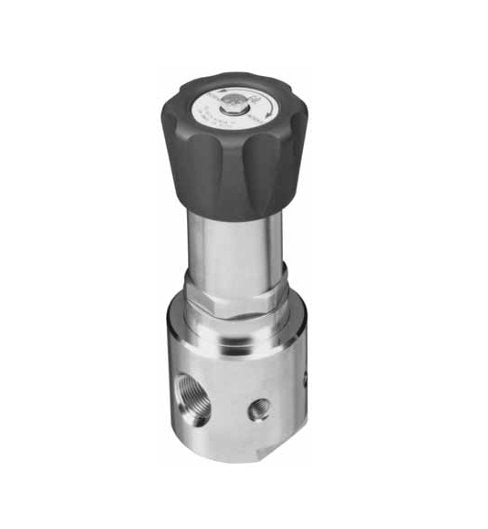

The GO Regulator PR-59 High Pressure Single Stage Regulator is designed to handle pressures up to 4000 psig while maintaining precise control and high flow capacity. Constructed with 316L Stainless Steel and MONEL® components, it offers exceptional durability and reliability. With features like a balanced poppet valve design, fluorocarbon seals, and optional self-relieving capability, this regulator ensures consistent pressure control and bubbletight shutoff. Suitable for gas and liquid systems, it meets the stringent requirements of government and institutional procurement standards.
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, Brass and MONEL® body constructionInlet pressure capability up to 4000 psigOutlet control ranges from 250 psig up to 4000 psigOptional self-relieving featureInlet and outlet ports of 1/2" or 3/4" FNPT with 1/4" FNPT gauge ports optional1/2" FNPT standardBalanced poppet valve design for constant pressure controlFluorocarbon (FKM) seals (other elastomers optional)Polychlorotrifluoroethylene (PCTFE) seat
Note Note
Contact the factory for any additional requirements.
Options Options
EB33
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Operating Temperature
-40 to +175 ºF | -40 to +80 ºC
Specifications Outlet Range
0 to 4000 psig
Specifications Piston Material
MONEL®
Specifications Piston Type
Self-Relieving
Specifications Port Configuration

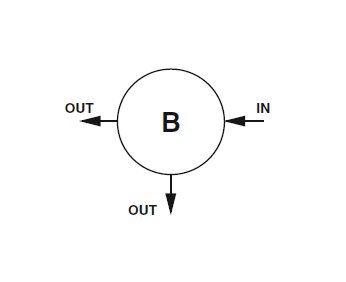

B - See Diagram for Port Configuration
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
4.6 lb | 2.1 kg
