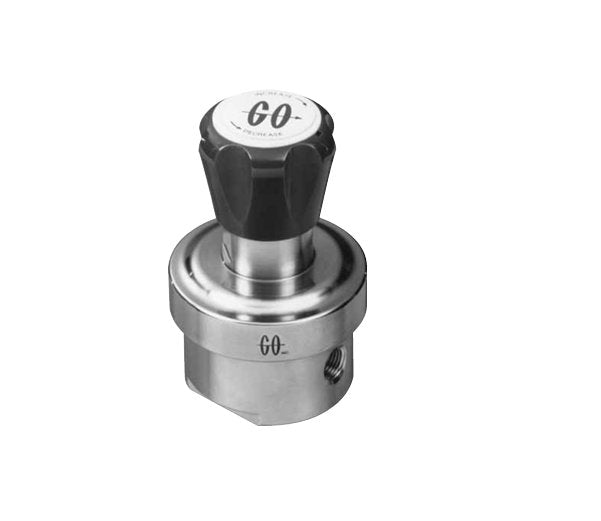

GO Regulator PR-7 High Flow Adjustable Regulator
GO Regulator PR-7 High Flow Adjustable Regulator
SKU:GOP-cdc271
GO Regulator PR-7: Precision control for high-flow gas applications. Durable 316L Stainless Steel build, 0-500 psig range, and easy adjustments.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
GO Regulator PR-7 High Flow Adjustable Regulator
$289.99
Quantity: 1
Claim Your Seller Account
GO Regulator PR-7 High Flow Adjustable Regulator
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator PR-7 Ultra High Flow Adjustable Single Stage Regulator is engineered for high gas flow applications with low inlet pressures and excellent control capabilities. With a durable construction of 316L Stainless Steel and Stainless Steel Diaphragm, it can withstand inlet pressures up to 3600 psig. The PR-7 ensures precise outlet pressure regulation even with varying flow requirements, making it ideal as a primary pressure supply in demanding industrial settings. Its unique features include a non-self-relieving diaphragm system, material options like Fluorocarbon and PEEK, and outlet pressure ranges of 0 to 500 psig. The T-handle adjusting assembly allows for easy adjustments within the 250 and 500 psig ranges, catering to a wide range of gas flow needs.
Product Specifications
Features And Specifications Features And Specifications
Minimal droop with large flow increasedNo resonance with large hydrogen flowsStainless steel diaphragm or INCONEL® diaphragm316L stainless steel or brass construction (optional HASTELLOY®, MONEL®, or chrome-plated brass)T-handle adjusting assembly for easier adjustment in the 250 and 500 psig rangesMaterial of construction: Brass, stainless steel, Fluorocarbon (FKM), Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK), or Kalrez®Stainless steel capCv flow coefficient = 1.1 (full Cv with 1/2" ported unit only)Maximum inlet pressure of 3600 psig with Polyetheretherketone (PEEK) seatOutlet pressure ranges of: 0-10, 0-25, 0-50, 0-100, 0-150, 0-250 and 0-500 psig
Options Options
Self-relievingPanel mountCaptured vent
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)/Metal Backing
Specifications Diaphragm Type
Non-Self-Relieving
Specifications Flow Coefficient Cv
1.1
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet And Outlet Connections
1/2 in. Female National Pipe Tapered (FNPT) | 1/4 in | 3/8 in
Specifications Operating Temperature
150 ºF | 66 ºC
Specifications Outlet Range
0 to 100 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/2 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Polytetrafluoroethylene (PTFE)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
3.2 lb | 1.45 kg
